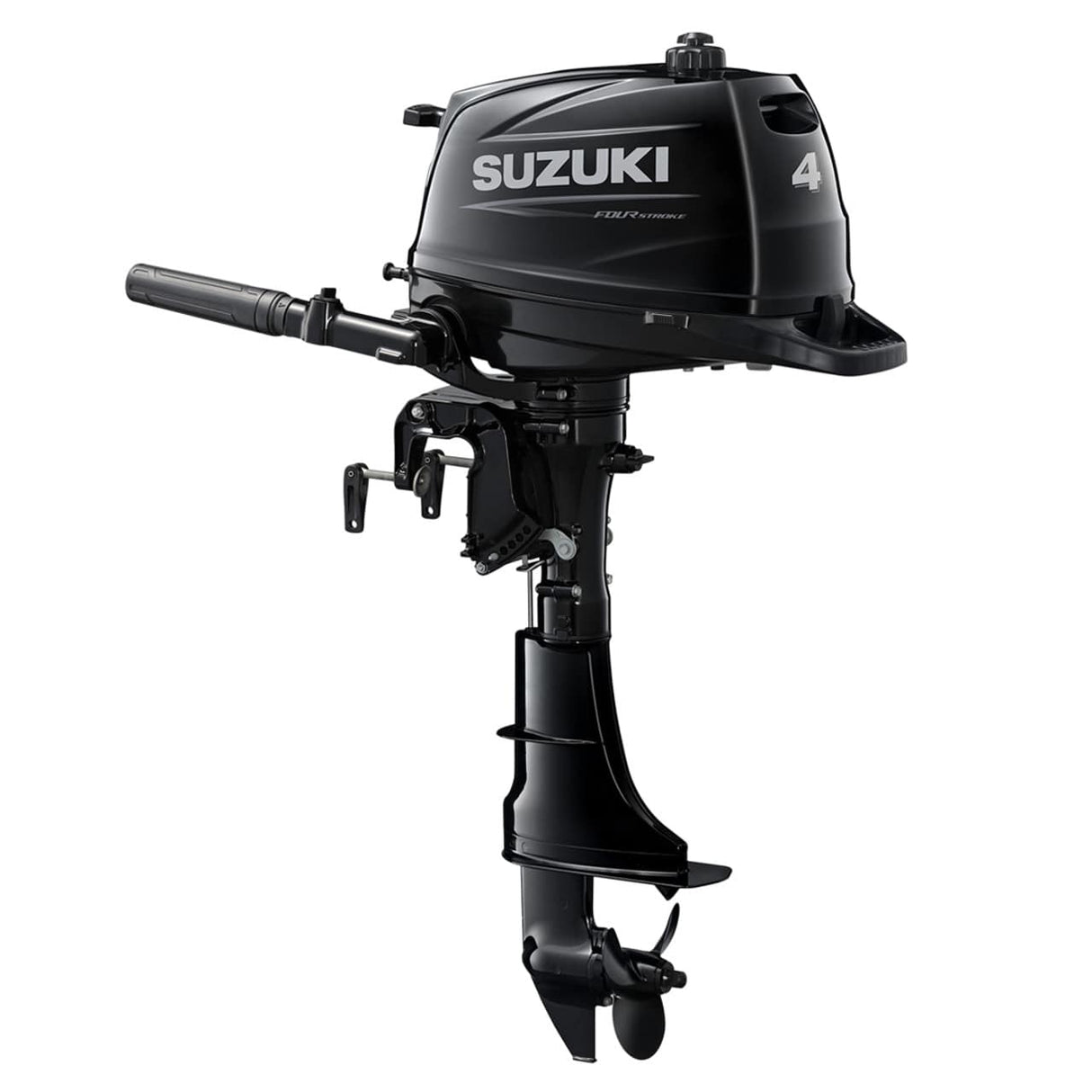

Suzuki 4 HP Outboard Motor - Model DF4AS5

$1,37000 USD $1,42000

4-STROKE OUTBOARD OIL INCLUDED ✓

5 YEAR WARRANTY & REGISTRATION INCLUDED ✓

LIFT-GATE SERVICE INCLUDED ✓


MSRP: $1,650

Shaft

15" (Short)

Weight

52.0 lb

Starting

Manual

Steering

Tiller

Trim & Tilt

Manual


The Suzuki 4 horsepower outboard motor model DF4AS5 is perfect for canoes, small fishing boats, and small to medium sized tenders and inflatables. The 4 hp Suzuki outboard boasts the largest displacement of any one cylinder outboard in this horsepower class. A full-size twist grip throttle, tiller steering, forward-neutral-reverse gear shift with large easy-to-use shift lever, 15 inch shaft, digital CDI ignition and integral fuel tank are just a few of the features you'll find standard on this model.

Shipping

(2-5 Business Days) with UPS & FedEx

In the Box

  • .26 gal. Integral Fuel Tank
  • Owner's Manual
  • Suzuki's Newest 5-Year Manufacturer Warranty
  • Aluminum Prop
  • Tool Kit

Specifications

  • Model
    DF4 AS5
  • Weight
    52.0 lb
  • Manufacturer
    Suzuki
  • Country of Manufacture
    Thailand
  • Horsepower
    4 HP
  • Shaft Length
    15" (Short)
  • Steering
    Tiller
  • Starting
    Manual
  • Trim & Tilt
    Manual
  • Fuel Delivery
    Carburetor
  • Fuel Tank
    Internal
  • Cylinder(s)
    1
  • Displacement
    138 CC (8.4 cubic inches)
  • Bore and Stroke
    2.38 x 1.89 inches
  • RPM Range
    4000-5000 RPM
  • Ignition System
    Digital Capacitor Discharge Ignition System
  • Induction Scavenging
    OHV
  • Valves per Cylinder
    2
  • Fuel Type
    Unleaded Gasoline (87 octane)
  • Oil Type
    SAE 10W-30 or SAE 10W-40
  • Oil Capacity
    24 fl oz. (700 mL)
  • Lubrication
    Wet Sump
  • Alternator
    Optional 12V 5A (installation required)
  • Cooling System
    Water-Cooled
  • Saltwater Rated
    Yes
  • Gear Ratio
    1.92:1
  • Gear Shift
    Forward-Neutral-Reverse (starboard side lever)
  • Propeller
    3-Blade Aluminum 7.5" Dia. x 6.5" Pitch
  • Internal Battery
    No

Features

  • Compact and Lightweight Design
  • 3 Way Storage: Stbd, Port, or Front
  • Saltwater Rated
  • Multi-Layer Corrosion Protection
  • Quiet Below-the-Water Exhaust
  • Fold-Down Tiller Handle
  • Rubber Mount Bracket System
  • Twist-Grip Throttle with Tensioner
  • Large Carrying Handle
  • Large Gear Shift Lever
  • Digital CDI Ignition for Quick Starting
  • 3-Star Ultra-Low Emission Rating
  • Shallow Water Drive (2 positions)
  • 5 Trim Positions w/Tilt Lock Pin
  • Over-Rev Limiter Protection
  • Throttle Tension Control
  • Steering Friction Tension Control
  • 90° Left / Right Turning for Tight Spots
  • Emergency Lanyard Stop Switch
  • Built-in .26 Gal. Fuel Tank (40 min. @ WOT)
  • 3-Blade Aluminum Propeller
  • Suzuki's Newest 5-Year Manufacturer Warranty

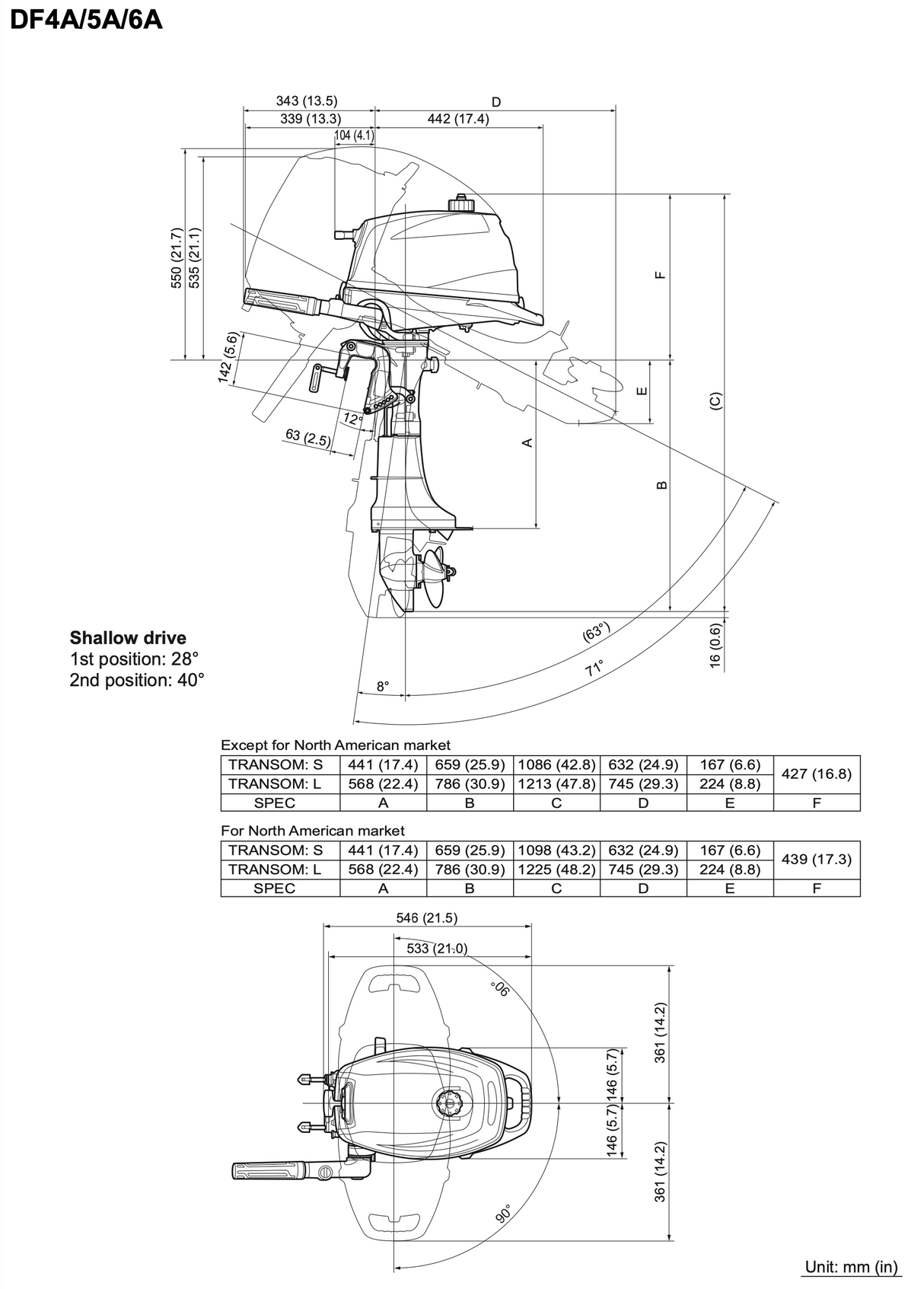

Shaft Length Guide

Suzuki 4 Hp Diagonal

Suzuki 4 HP Outboard Motor - Model DF4AS5

$1,37000 USD $1,42000

Model

DF4 AS5

Horsepower

4 HP

Shaft Length

15" (Short)

Weight

52.0 lb

Starting

Manual

Steering

Tiller

Trim & Tilt

Manual

Fuel Delivery

Carburetor

Fuel Tank

Internal

Cylinder(s)

1

Displacement

138 CC (8.4 cubic inches)

Bore and Stroke

2.38 x 1.89 inches

RPM Range

4000-5000 RPM

Ignition System

Digital Capacitor Discharge Ignition System

Induction Scavenging

OHV

Valves per Cylinder

2

Fuel Type

Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line

Internal

Oil Type

SAE 10W-30 or SAE 10W-40

Oil Capacity

24 fl oz. (700 mL)

Lubrication

Wet Sump

Alternator

Optional 12V 5A (installation required)

Cooling System

Water-Cooled

Saltwater Rated

Yes

Gear Ratio

1.92:1

Gear Shift

Forward-Neutral-Reverse (starboard side lever)

Propeller

3-Blade Aluminum 7.5" Dia. x 6.5" Pitch

Internal Battery

No

Manufacturer

Suzuki

Country of Manufacture

Thailand
