If you've ever pulled a boat out of saltwater and found a lower unit covered in white, chalky residue or pitting on the aluminum castings, you've seen what electrolytic corrosion does when it's left unchecked. The process is invisible while the boat is in the water, steady in its damage, and expensive to repair once it reaches structural components.
For outboard owners, understanding how it works and what stops it is a maintenance fundamental that belongs at the same level of attention as oil changes and fuel system care.

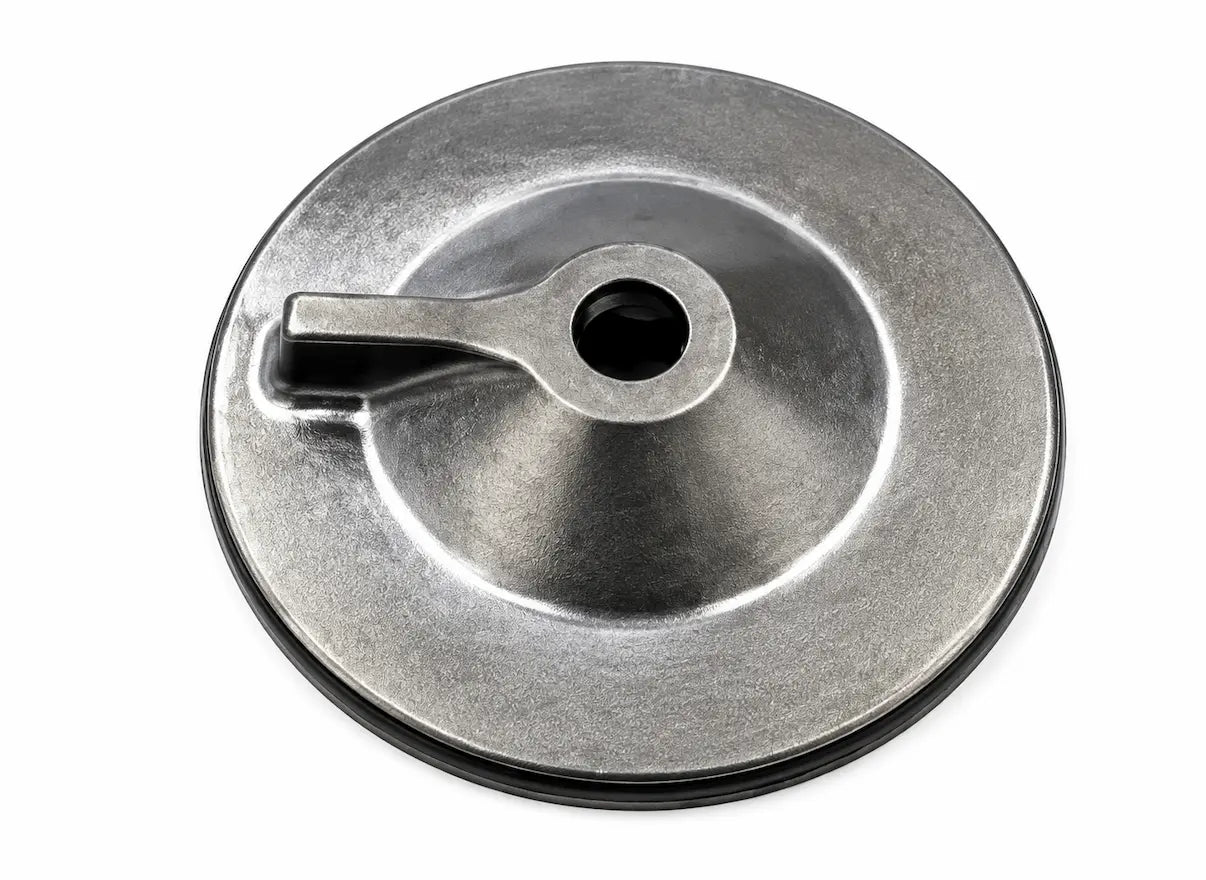

Marine anodes are sacrificial metal components mounted to the engine, lower unit, and hull to attract electrochemical corrosion away from the hardware you actually need to protect. They work by being more electrochemically active than the metals around them, meaning they corrode first and in doing so redirect the corrosion process away from the propeller shaft, lower unit housing, trim tabs, and other components where corrosion damage would be both costly and structurally significant. They don't require power, maintenance inputs, or adjustment during normal use.
At BoatMaxOnline, we support outboard owners across Yamaha, Suzuki, Honda, and other major marine platforms with the parts and guidance they need to keep their hardware protected through a season of use. Knowing how marine anodes function, which material suits your water type, and when to replace them keeps a simple, inexpensive part doing its job before corrosion becomes a repair.
What Marine Anodes Actually Do
The corrosion process that marine anodes address is called galvanic corrosion, and it happens whenever two dissimilar metals are electrically connected in an electrolyte solution, which is exactly what seawater and even freshwater provide in a marine environment. When two metals with different electrochemical potentials come into contact through a conductive medium, the more active metal gives up electrons to the less active one. The more active metal corrodes; the less active one is protected.
The rate at which the anodes consume themselves depends on the conductivity of the water, the surface area of protected metals, the presence of stray electrical current from shore power or other vessels, and the total time the boat spends submerged.
An anode that looks untouched after a full season may indicate the boat isn't spending enough time in the water to activate the galvanic reaction, or that the anode isn't making proper electrical contact with the component it's protecting. Either condition is worth investigating.
Zinc, Aluminum, and Magnesium: Which Marine Anodes Fit Your Water
The material choice for marine anodes is determined by the type of water the boat operates in, and using the wrong material can mean the anode is either too active or not active enough to protect the metals it's paired with. Zinc anodes are the traditional choice for saltwater use. Zinc sits at an electrochemical potential that makes it an effective sacrificial material in salt environments, and it has a long service history in marine applications. In freshwater, however, zinc can passivate, meaning it forms an oxide layer that blocks the galvanic reaction and renders the anode effectively inactive.
Aluminum anodes work across a wider range of water conditions and are effective in both saltwater and brackish environments. Aluminum is also more electrochemically active than zinc in many conditions, which means it may offer better protection for aluminum-heavy outboard lower units where the potential difference between the anode and the protected metal needs to be significant enough to keep the reaction going in both low and high conductivity water.
Many outboard manufacturers now specify aluminum as the recommended anode material for their engines, and it's worth checking the service documentation for your specific platform.
Magnesium anodes are the correct choice for freshwater use where water conductivity is low. Magnesium is the most electrochemically active of the three common anode materials, and its higher driving voltage is necessary to push the galvanic protection reaction in low-conductivity fresh water where zinc and aluminum anodes may not activate reliably.
Where Marine Anodes Mount on an Outboard
The lower unit is where most of the corrosion exposure on an outboard happens, and it's where the greatest concentration of marine anodes are installed from the factory. The cavitation plate, the torpedo housing, and the skeg typically carry mounting points for anodes sized to protect the aluminum casting around them.
Each location matters because galvanic protection is not uniform across distance; an anode mounted at one point on the lower unit provides the strongest protection to the metals closest to it, with diminishing effect as distance increases.
The trim tabs, if the engine is equipped with them, are another location where anodes are commonly installed or where the trim tabs themselves serve an anode function. On many Yamaha, Suzuki, and Honda outboards, the trim tab is made from zinc or aluminum and is designed to be sacrificial in addition to its trim function.
When that tab corrodes away without being replaced, it stops performing either function, and the anode protection it was providing to nearby components disappears at the same time. Above the waterline, anode placement is less critical because galvanic corrosion requires an electrolyte medium to conduct the reaction.
However, components that are intermittently submerged or that operate in splash zones, such as the mid-section on a long-shaft outboard, may benefit from additional protection depending on how the boat is stored and how much time those components spend in contact with water. Reviewing the factory anode placement on your specific outboard engine maintenance documentation gives you the baseline for what the manufacturer considers necessary.
Freshwater vs. Saltwater: How Environment Changes the Equation
Saltwater's high ion concentration makes it an excellent electrolyte, which means galvanic corrosion proceeds faster and more aggressively in salt environments than in fresh water. Outboards running in saltwater will consume marine anodes faster than the same engine in a freshwater lake, sometimes significantly so, and inspection intervals should reflect that difference.
A boat that spends the season in a saltwater marina and is left in the water between uses will see more anode consumption than one that is trailered and only submerged during active use. Brackish water, the mix of fresh and salt water found in estuaries and tidal rivers, presents a variable environment that can change with rainfall, tidal cycles, and seasonal conditions.
Aluminum anodes tend to perform better than zinc in these conditions because their effective range spans both low and moderate conductivity environments. If your boat operates primarily in brackish conditions, aluminum is typically the safer starting material, and actual anode wear rate over a season will give you a more accurate service interval than any general guideline.
Freshwater corrosion is lower in absolute intensity than saltwater corrosion, but it still occurs, particularly for boats stored in marinas with shore power connections. Stray current corrosion, which is distinct from galvanic corrosion and can be significantly more aggressive, is a concern in marina environments regardless of water salinity.
Marine anodes provide some protection against stray current damage, but persistent rapid anode consumption without obvious galvanic cause is a signal worth investigating through a proper bonding and stray current inspection before the next haulout.
Reading Anode Wear and Knowing When to Replace
The condition of the marine anodes on an outboard tells you something about the corrosion environment the boat is running in, and checking them at every haulout is a faster diagnostic step than it might seem. An anode that has consumed 50 percent or more of its original mass should be replaced before the next season. An anode that has consumed less than 20 percent may indicate poor electrical contact with the protected metal, passivation in freshwater, or a boat that spends very little time submerged; both extremes are informative.
A corroded mounting surface is worth addressing when anodes are replaced. The anode needs direct metal-to-metal contact with the component it's protecting to allow the galvanic reaction to flow. Paint, sealant, or oxidation between the anode and its mounting point insulates the connection and can prevent the anode from doing its job even if the material and size are correct.
Replacement intervals based solely on calendar time are less reliable than inspections based on actual material consumption. A boat in a highly corrosive environment may need a node replacement mid-season; one in a low-conductivity freshwater lake with limited submersion time may find the same hardware still serviceable after two seasons. The only accurate indicator is the physical condition of the anode at inspection, which is why haulout checks are more useful than interval-based assumptions.
Stray Current and Bonding: What Marine Anodes Can't Fix Alone
Galvanic corrosion and stray current corrosion are related but distinct problems, and marine anodes are designed primarily to address galvanic corrosion. Stray current corrosion occurs when external electrical current, from shore power leakage, poorly grounded electrical systems on neighboring boats, or faults in the boat's own wiring, flows through the water and into the hull or drive components.
The corrosion from stray current can be dramatically faster than galvanic corrosion and can destroy anodes and protected metals alike in a fraction of the time a purely galvanic environment would require.
A boat with a properly installed bonding system, where underwater metal components are electrically connected to a common ground, gives marine anodes the best possible working environment by ensuring that galvanic protection extends to all connected metals rather than only those in direct physical contact with the anode. Without a bonding system or with a damaged one, isolated metal components may corrode independently even when anodes are present elsewhere on the boat.
Shore power connections introduce additional complexity. The path current takes through shore power cables and into the water can accelerate corrosion on nearby boats and specifically on the components closest to where the current exits the hull.
Isolation transformers and shore power management systems address this at the source, and they're worth considering for boats that spend extended time in a marina with shore power connected. Marine anodes slow the damage in these situations but aren't a complete solution when stray current is the primary driver.
Review Anode Options Before Corrosion Becomes a Bigger Issue
Marine anodes are among the least expensive components on an outboard in absolute terms, and among the most consequential in terms of what happens when they're ignored. A set of anodes that costs a fraction of a typical maintenance visit protects a lower unit that costs a significant portion of the engine's value to repair or replace. The math on staying current with anode inspection and replacement is clear for any boat that spends meaningful time in the water.
The right hardware for your setup depends on your water type, how much time the boat spends submerged, the specific mounting points on your engine model, and whether stray current is a factor in your marina environment. Getting those details right ensures the anodes you install are actually performing the electrochemical work you're counting on them to do. Browse replacement options and corrosion protection hardware at BoatMaxOnline's anodes and trim tabs collection before corrosion becomes a more expensive conversation, or contact BoatMaxOnline if you want help identifying the correct anodes for your specific outboard platform and operating conditions.
FAQ
How do I know which marine anodes are correct for my outboard?
Reproduction anodes for use on outboard engines should start with the service documentation for the engine manufacturer, model year, and model number. Reproduction anodes for most current Yamaha, Suzuki and Honda models are detailed in their respective service manuals, including locations, sizes and recommended materials for the anode. Using the correct OEM specification ensures the anode's electrochemical properties match what the manufacturer designed the protection system around.
Can I mix zinc and aluminum anodes on the same boat?
Mixing anode materials on the same boat is generally not recommended. Different materials have different electrochemical potentials and thus do not protect each other or surrounding hardware consistently. Choose one material appropriate to your water type and use it consistently across all anode positions on the engine and hull.
Why is my anode consuming faster than expected?
Rapid anode consumption can indicate a very aggressive environment. The causes of rapid anode consumption include stray electrical current from shore power, from adjacent boats, poor bonding of the cathodic protection system, and an undersized anode for the surface area being protected. If the rate seems excessive relative to your environment and use patterns, a stray current inspection is a reasonable next step.
Do marine anodes need to be the same brand as the engine?
A reputable Aftermarket manufacturer can also produce OEM engine manufacturer anodes using the same specific alloy that the engine manufacturers’ protection system was designed to. Whilst acceptable, aftermarket anodes must be acceptable if they meet the same alloy specification and physical dimensions, but alloy composition matters more than brand name.
Should I paint over my anodes during a bottom job?
No. Paint over an anode will prevent the necessary contact with water to allow the galvanic protection reaction to occur. Anodes should be installed on clean bare metal surfaces and left unpainted and uncoated. If an anode was accidentally coated during a bottom job, remove the paint from the anode surface before returning the boat to the water.
Do I need marine anodes if my boat only runs in freshwater?
Yes, but different materials are required. The Magnesium anode is designed for use in fresh water, as the activation of Zinc and Aluminum anodes in fresh water is not always 100% reliable due to the lower conductivity of fresh water. In general, corrosion in fresh water occurs at a slower rate than in salt water, but there is still corrosion.
How long do marine anodes typically last?
The service life of an anode depends upon the type of water it is in, how long it is submerged, and the amount of corrosive material it is dealing with. In saltwater, regularly used anodes will need to be replaced and/or re-packed annually.
