Most new boaters spend their first season learning the throttle, the trim, and the water around them, and the instrument cluster on the helm gets treated like wallpaper. The boat gauges are there, the needles move, and nothing has gone wrong yet, so they stay in the background. That changes the first time an engine runs hot, drops oil pressure, or throws a warning alarm in the middle of a crossing and the person at the helm doesn't know what they're looking at or what to do about it.
Boat gauges don't diagnose problems, but they give you the information you need to catch a problem before it becomes expensive. A temperature gauge climbing into the red during a run is telling you something specific about what's happening in the cooling system, and you have a decision window that closes fast.
An oil pressure gauge that reads low at idle and recovers at speed is a different story from one that reads low across the board. The difference between those two situations depends entirely on whether you know what the gauge is measuring and what normal looks like.
At BoatMaxOnline, we work with outboard owners running Yamaha, Suzuki, Honda, and other major platforms who are setting up a new helm or upgrading an existing instrument panel. This guide covers the core boat gauges you'll find on most outboard-powered vessels, what each one measures, what the readings mean in practical terms, and when a reading should make you stop and think before continuing.

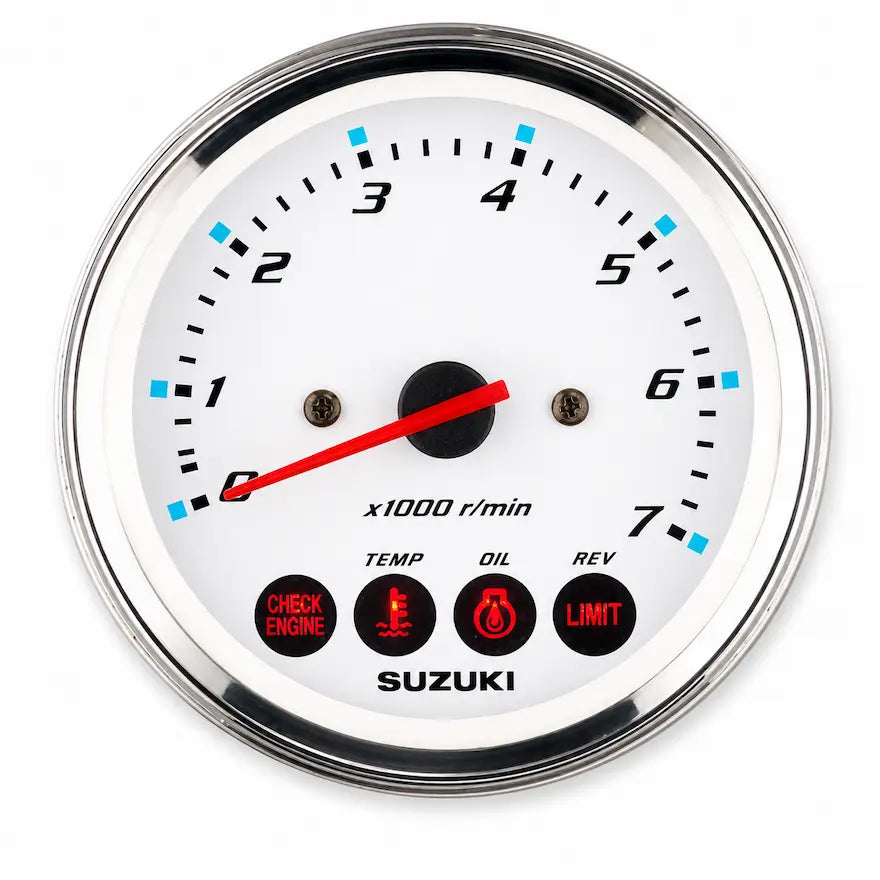

Tachometer: Engine Speed and Power Delivery
The tachometer is the gauge most boaters pay attention to most of the time, and for good reason. It shows engine RPM in real time, which tells you whether the engine is working in its optimal power range, whether the propeller is matched correctly to the load, and whether the engine is hitting its rated top RPM at wide-open throttle.
Among all boat gauges, the tachometer is the one that directly connects your throttle input to what the engine is actually delivering, and a reading that doesn't match expectations on a healthy engine almost always points to a propeller issue first.
For most four-stroke outboards, the manufacturer specifies a wide-open throttle RPM range, typically somewhere between 5,000 and 6,000 RPM depending on the engine, within which the outboard should reach peak output. Running consistently below that range under normal load puts more stress on the engine and reduces efficiency.
Running above it shortens component life and risks overload on internal parts designed to operate within a defined stress envelope. The tachometer is what tells you which side of that line you're on.
Cruise RPM is the other number worth developing a feel for on your specific setup. Most four-stroke outboards hit their best fuel economy somewhere between 3,500 and 4,500 RPM depending on hull type and load, and the tachometer anchors that number to a consistent engine behavior you can replicate across different conditions.
Among boat gauges, this is the one that most directly rewards a boater who takes time to learn their engine.
Speedometer and GPS Speed: Two Different Measurements
Boat speedometers use a pitot tube, a small water-intake fitting on the hull, to measure dynamic water pressure and convert that pressure to a speed reading. At slow speeds, pitot-based boat gauges are notoriously imprecise; the pressure differential is small enough that minor variations in mounting angle, fouling on the intake, or partial blockage from debris can shift the reading significantly.
At planing speeds in clean water, most pitot speedometers read reasonably accurately, but they measure speed through the water, not speed over ground, which means current affects the reading.
GPS speed, whether from a dedicated GPS gauge or a chartplotter with speed output, measures actual ground speed relative to a fixed position reference. In a river with a strong current or when running in tidal water, the difference between pitot speed and GPS speed can be substantial.
A boat making ten knots through the water in a six-knot ebbing tide is making four knots over the ground, and only GPS speed will show you that. For navigation and routing purposes, GPS speed is the number that actually matters.
Running both on the helm gives you useful cross-reference data. A pitot speed that reads significantly higher than GPS speed consistently isn't just a calibration issue; it may indicate an intake fouled enough to hold higher pressure than actual water flow produces.
These are the kinds of readings that boat gauges generate which only become interpretable once you've spent time watching what's normal for your specific setup.
Engine Temperature Gauge: The One You Can't Ignore
The engine temperature gauge measures coolant or block temperature depending on the sensor configuration, and it's the instrument that gives you the shortest decision window of any reading on the helm. Most outboards run with a thermostat-controlled temperature in the 140 to 160 degree Fahrenheit range at normal operating load; the exact spec varies by manufacturer and model, and the owner's manual identifies the normal operating range for your engine.
What matters is knowing where the needle normally sits on your specific boat gauges, because that baseline is what makes a deviation meaningful.
A reading that rises steadily during a run, particularly in conditions that don't explain it, points toward a cooling system problem. The most common cause on an outboard is a water pump impeller that has worn past its ability to move adequate flow, which happens on a time and running-hours schedule rather than as a sudden failure.
Other contributors include a blocked water intake, a thermostat stuck in the closed position, or a restriction in the cooling passages. The temperature gauge doesn't tell you which one; it tells you the result and gives you a window to act before the engine reaches a temperature that causes damage.
Overheating on an outboard can happen faster than people expect, particularly in warm ambient conditions or at sustained high RPM. If the temperature reading climbs into the warning zone, reduce throttle immediately, check whether the tell-tale water stream from the engine is flowing normally, and assess whether the engine should keep running or shut down while you investigate.
The few minutes between a warning reading and actual heat damage is exactly the window that functioning boat gauges are there to give you.
Oil Pressure Gauge: What Low Pressure Actually Means
Oil pressure is one of the most misunderstood readings on the helm, partly because low oil pressure has two very different causes with very different implications. A reading that drops at idle but recovers at higher RPM is often a characteristic of the engine's oil pump design rather than a sign of a problem; some engines produce naturally lower oil pressure at idle because the pump output is RPM-dependent and idle pressure is still within specification.
The primary function of oil pressure in an outboard is to confirm that the lubrication system is delivering oil to the bearings and internal surfaces that need it. When pressure drops below specification, those surfaces run with reduced lubrication, and the damage that follows isn't gradual.
Bearings that lose lubrication fail quickly and the damage extends to the crankshaft and the components around it. Among all boat gauges, the oil pressure instrument gives you a warning before that happens, but only if you're watching it and know what the reading means.
Low oil pressure on a warm engine that's been running normally can indicate low oil level, a failing oil pump, or internal wear that's opened up clearances beyond what the system can maintain pressure against.
The boat gauges measuring oil pressure and temperature together often tell a more complete story than either one alone; an engine running hot and showing lower-than-usual oil pressure simultaneously is flagging multiple system stresses, which changes the urgency of the response.
Fuel Gauge: Reading It Honestly
Outboard fuel boat gauges get less respect than they deserve, mostly because they've earned a reputation for being inaccurate. Sender units in marine fuel tanks are mechanical float devices that are sensitive to tank shape, fuel sloshing in a running boat, and the gradual degradation of the float or the resistive sender element over time.
A fuel gauge that reads full when the tank is at three-quarters, or that drops faster in a beam sea than it does in flat water, isn't broken the way an oil pressure gauge reading wrong is broken. It's a mechanical instrument with known limitations that you account for operationally.
The practical approach is to develop your own fuel consumption baseline on your specific engine, hull, and load combination. If you know your outboard burns approximately eight gallons per hour at typical cruise RPM and your tank holds 50 gallons, you have a usable runtime calculation that doesn't depend on the gauge being accurate to the last increment.
A fuel gauge that reads higher than actual, the worst direction to be wrong, is the one that creates dangerous range situations. Calibrating by running the tank down to known levels and marking the gauge face at accurate increments is something many experienced boaters do with a new boat or after a sender replacement. Like all boat gauges, the fuel gauge gives you honest information only after you've taken the time to understand it against your actual behavior on the water.
Voltmeter and Battery Condition: The Electrical System Signal
A voltmeter is among the boat gauges that tells you less about absolute electrical health than it does about whether the charging system is keeping up. With the engine running, a healthy 12V system typically shows between 13.5 and 14.5 volts; that range indicates the alternator or charging system is putting current back into the battery at a rate that exceeds draw.
A reading below 13 volts with the engine running suggests the charging circuit isn't keeping up, which could point to a failing alternator, a loose connection, or a battery that's no longer accepting a charge.
Battery voltage at rest, with the engine off and no loads drawing current, should read around 12.6 volts for a fully charged lead-acid battery, dropping toward 12.0 as the battery depletes. A voltmeter that shows 12.0 volts at rest and drops to 11.5 when the engine cranks is telling you the battery is near the end of its useful charge capacity, even if the engine still starts. This is particularly relevant at the start of a season when a battery has sat for months without a maintenance charge.
The voltmeter is one of the boat gauges that gets ignored until an electrical problem is already visible, which is the wrong time to start paying attention. A quick glance during a run costs nothing and gives you early warning of charging problems before you're running on battery reserve and wondering why systems are dimming.
Warning Systems and Alarm Integration
Most modern four-stroke outboards communicate engine condition through an integrated warning system that works alongside the physical boat gauges rather than replacing them. An alarm that sounds without a corresponding gauge reading demands attention from both directions; check the gauge for confirmation, and if it reads normal while the alarm is active, treat the alarm as the more reliable source until you can determine what triggered it.
Yamaha's Command Link, Suzuki's Precision Control, and equivalent systems from Honda and other manufacturers transmit engine data to digital displays that go beyond what analog boat gauges can show, including individual cylinder data, trim angle, fuel flow rate, and historical fault codes.
If your outboard supports a digital monitoring system and your helm doesn't have it installed, adding it gives you a substantially deeper view of what the engine is doing. That visibility is particularly valuable on a larger or newer four-stroke where the cost of an undetected problem is higher.
Warning lights and audible alarms serve the function of pulling your attention to a condition even when you're not scanning the boat gauges, and they're calibrated to trigger before the condition reaches a damaging threshold. A temperature alarm, for example, typically triggers at a temperature below the point of heat damage to give you time to respond. Understanding what the alarm is connected to and what the appropriate response is before you hear it, rather than after, is the kind of preparation that keeps a manageable situation from becoming a serious one.
Review Gauge Options That Match Your Engine and Helm Setup
Reading the boat gauges on your helm isn't the same as understanding what they're measuring, and the gap between those two things is where small problems become expensive ones. An engine temperature reading you've never paid attention to doesn't help you when the needle starts climbing, because you don't know whether what you're seeing is normal for your engine or a warning.
The same goes for oil pressure, fuel level, and voltage: the readings are only useful if you know what they mean in the context of your specific setup.
The right instrument package depends on your engine platform, your monitoring preferences, and how much information you want visible at a glance. Starting with the core boat gauges, tachometer, temperature, oil pressure, fuel, and voltmeter, covers the conditions that matter most for outboard reliability and gives you a solid baseline to build from.
Browse gauge options and compatible instrumentation at BoatMaxOnline to find instruments matched to your engine and helm configuration, or contact BoatMaxOnline directly if you'd like help selecting the right gauge package for your specific outboard platform.
FAQ
Do all outboards require the same boat gauges?
Not exactly. The core instruments, tachometer, temperature, oil pressure, fuel level, and voltmeter, apply broadly across four-stroke outboard installations. Specific gauge compatibility depends on the engine's sensor outputs and whether the engine uses an analog or digital communication protocol.
What does it mean when my temperature gauge spikes suddenly?
A sudden temperature spike typically points to an interruption in cooling water flow. On most outboards, the first thing to check is the tell-tale stream from the engine; if it's not flowing, the water pump may have failed or the intake may be blocked.
Can I add gauges to an existing helm?
Yes, as long as the engine's sensor outputs match the gauge specifications and there's wiring capacity to reach the helm. Some engine platforms use proprietary sensor protocols that require specific gauges or adapters.
Why does my oil pressure gauge read low at idle?
Many four-stroke outboards produce lower oil pressure at idle than at operating RPM because the oil pump is driven by the engine and outputs proportionally to speed. If the pressure recovers to a normal reading as RPM increases, the reading may be within specification for your engine.
How accurate are marine fuel gauges?
Marine fuel gauges are useful indicators, not precision instruments. Float-based sender units are sensitive to tank shape, fuel movement in a running boat, and sender degradation over time.
What should the voltmeter read with the engine running?
A healthy charging system on a 12V outboard installation should show between 13.5 and 14.5 volts at the voltmeter with the engine running. A reading below 13 volts with the engine running may indicate a charging system issue worth investigating.
Should I upgrade to digital gauges or stick with analog?
Analog boat gauges are reliable, clean to install, and easy to read at a glance in most lighting conditions. Digital systems and multifunction displays offer more data depth, including fault codes, fuel flow, and trim angle, and are particularly useful on larger four-stroke outboards where monitoring depth matters more.
