Suzuki 30 HP Outboard Motor - Model DF30ATLW5
Shaft
20" (Long)
Weight
158.0 lb
Starting
Electric
Steering
Remote
Trim & Tilt
Power Trim & Tilt
Introducing the Suzuki 30 HP outboard motor model, the DF30ATLW5, a portable 30 HP outboard motor designed with a modern clean environmental design. This unit is equipped with a 20-inch long shaft, electric start, power trim and tilt, and tiller control, all of which contribute to its superior performance.
With fast acceleration, this Suzuki model delivers a fast start. The unique design of this hp outboard motor is aimed at fuel efficiency, featuring an Electronic Fuel Injection engine that doesn't require a battery, a first in the world for a 30 hp outboard.
The DF30ATLW5 represents the epitome of portability, combined with the convenience of an electric start and backup pull rope, ensuring a reliable start every time. Power trim and tilt allow for easy adjustments, while tiller control ensures precise maneuverability.
In essence, the DF30ATLW5, with its next-generation four-stroke, single overhead engine, showcases the unmatched power and efficiency of the Suzuki 30 HP outboard motor. Enjoy the superior performance and amazing fuel economy that this outboard motor offers, reflecting the modern clean environmental design of the new Suzuki 30 HP.
So, gear up for the future of boating with the new 30 HP Suzuki outboard, where cutting-edge efficiency meets innovation and sustainability.
Shipping Info
Shipping Info
What's In the Box
What's In the Box
- 6 gal Fuel Tank
- Fuel Line
- Owner's Manual
- Aluminum Propeller
- Tool Kit
- Standard Side Mount Control Box and Harness
- Suzuki's Newest 5-Year Manufacturer Warranty
Features
Features
- Battery-Less Electronic Fuel Injection
- Easy Start - Recoil Starter
- Lean Burn Control
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Digital CDI
- Fresh Water Flushing System
- Suzuki Anti-Corrosion System
- Suzuki's Newest 5-Year Manufacturer Warranty
Specifications
Specifications
| MODEL | DF30ATLW |
|---|---|
| WEIGHT | 158.0 LB |
| MANUFACTURER | Suzuki |
| COUNTRY OF MANUFACTURE | Thailand |
| HORSEPOWER | 30HP |
| SHAFT LENGTH | 20" (Long) |
| STEERING | Remote |
| STARTING | Electric |
| TRIM & TILT | Power Trim & Tilt |
| FUEL DELIVERY | EFI |
| FUEL TANK | External |
| CYLINDER(S) | 3 |
| DISPLACEMENT | 29.8 (489) |
| BORE AND STROKE | 2.80 x 2.68 () |
| FULL THROTTLE RPM RANGE | 5300 - 6300 |
| IGNITION SYSTEM | Digital CDI |
| INDUCTION SCAVENGING | SOHC |
| VALVES PER CYLINDER | 4 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 |
| OIL CAPACITY | 1.6 (1.5) |
| LUBRICATION | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| ALTERNATOR | Electric 12V 14A |
| COOLING SYSTEM | Water-Cooled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 2.09:1 |
| GEAR SHIFT | Forward-Neutral-Reverse |
| PROPELLER | 3 x 10.25 x 12 |
| INTERNAL BATTERY | No |
Shaft Length Guide
Shaft Length Guide
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Customer Reviews

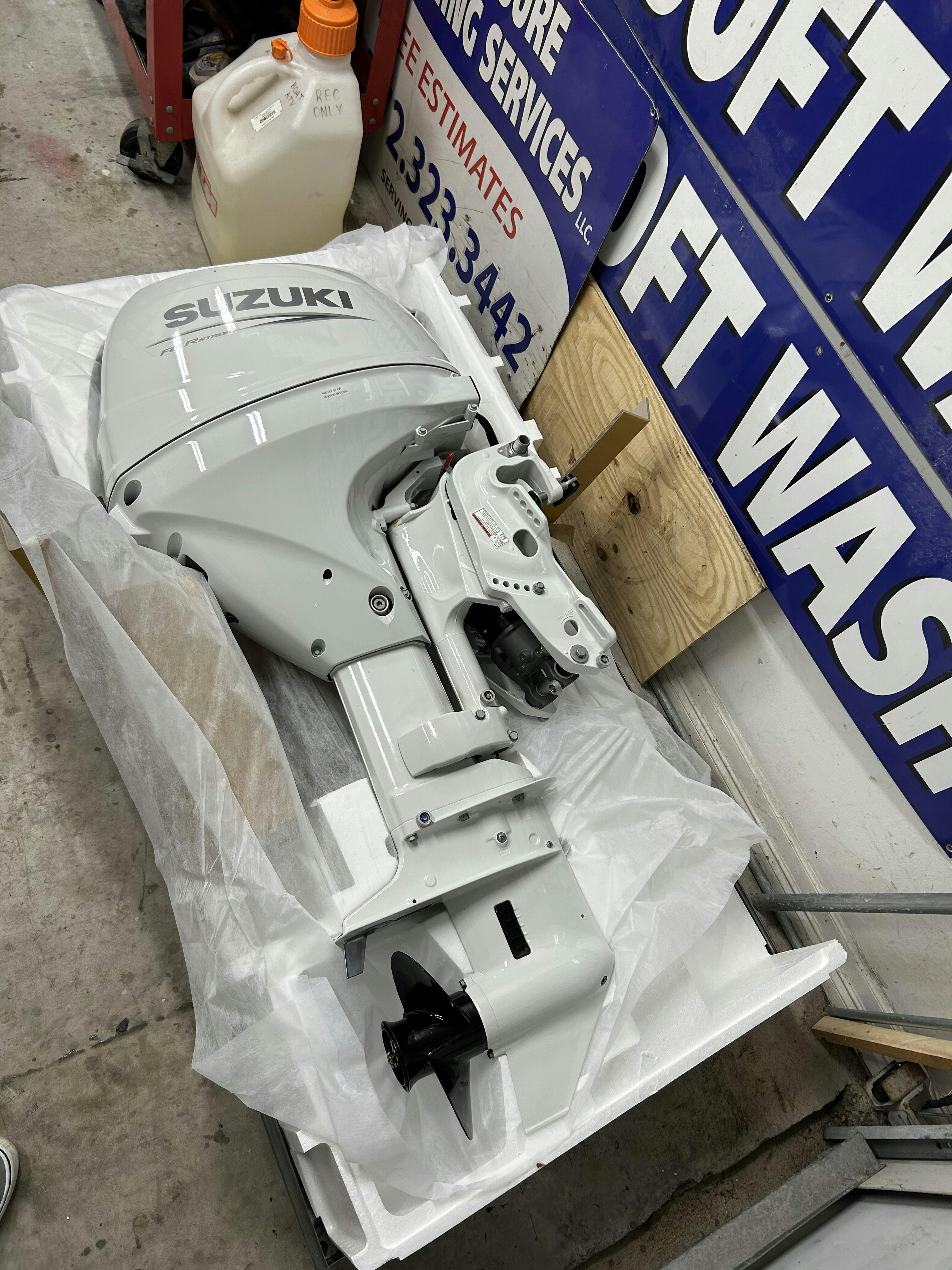

Motor arriived in good time. The salesman was very good at helping with the order. Fed ex noted that the box was damaged by a fork lift and insisted that we open it up to check, All was good. nothing was missing. We proceeded to mount the engine.
Was nervous buying online but very happy how it all went so easy. They delivered my brand new white Suzuki 30hp as ordered to my door. Im doing the shop payment plan for 1 year to pay it off.
DF25ATLW5 great motor and service by Boat Max online in Pompano Beach Florida. I originally ordered the 30 but they were on back order. Boat and Max went ahead and credited me the difference and offered me the 25 hp which was great. Service was excellent from Boat Max located in Pompano Beach.
It took the engine about two weeks to arrive - manufacturer delays. The engine was very well packed and delivered right onto my driveway.
Installation was straightforward. Get a friend to help you lift the engine into place!
The only issue I had **which isn't a Boat Max Online issue** was that the control cables for the throttle and transmission were not included in the package. Order these from Suzuki when you order the engine so they'll be there when you need them. Also- these cables are NOT the same length; if you put them on reversed you engine won't start.
Also- Boat Max registered the engine for the warranty for me. When I called Suzuki about the cables, they already had all of my engine information. Very nice Boat Max!
It took the engine about two weeks to arrive - manufacturer delays. The engine was very well packed and delivered right onto my driveway.
Installation was straightforward with the only thing slowing it down was having to buy a tachometer to monitor the break-in period of the engine.
The only issue I had -which isn't a Boat Max Online issue- was that the control cables for the throttle and transmission were not included in the package. Order these from Suzuki when you order the engine so they'll be there when you need them. Also- these cables are NOT the same length; if you put them in reversed you engine won't start.
Also- Boat Max registered the engine for the warranty for me. When I called Suzuki about the cables, they already had all my information. Very nice Boat Max!
