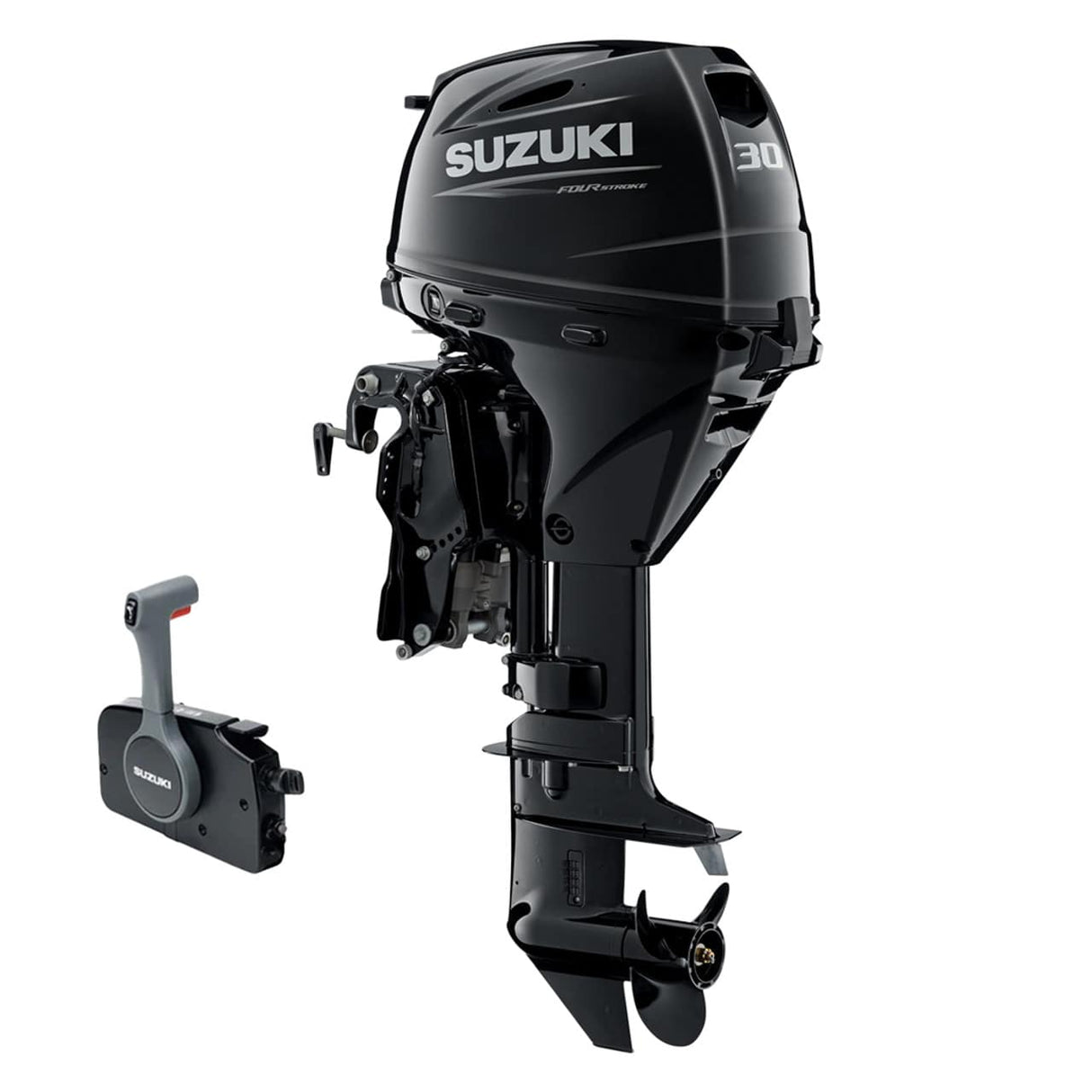

Suzuki 30 HP Outboard Motor - Model DF30ATL5

(5)
$4,96000 USD $5,06000

4-STROKE OUTBOARD OIL INCLUDED ✓

5 YEAR WARRANTY & REGISTRATION INCLUDED ✓

LIFT-GATE SERVICE INCLUDED ✓

MSRP: $6,870

Shaft

20" (Long)

Weight

158.0 lb

Starting

Electric

Steering

Remote

Trim & Tilt

Power Trim & Tilt

Don't be fooled by the DF30A EFI's small size; it packs a powerful punch. It is the world's first 30 HP outboard motor with Lean Burn and Battery-Less Electronic Fuel Injection, as well as the first in its class with friction-reducing roller rocker arms and offset crankshafts for smoother operation and greater mechanical efficiency. As the most technologically advanced portable outboard on the market today, its cutting-edge design provides quick starts, impressive performance, and superior fuel economy, allowing you to feel confident wherever and whenever you go. Our Battery-Less Fuel Injection System fits perfectly in the Suzuki DF30A EFI, adding no extra bulk or weight. Despite the lack of a battery, it provides more acceleration, faster starts, and smoother operation in all conditions.

Shipping

(3-9 Business Days) with Freight Shipping

In the Box
  • 6 gal Fuel Tank
  • Fuel Line
  • Owner's Manual
  • Aluminum Propeller
  • Tool Kit
  • Standard Side Mount Control Box and Harness
  • Suzuki's Newest 5-Year Manufacturer Warranty
  • Remote Control Cables NOT INCLUDED * Due to variating size requirements

Specifications
  • Model
    DF30 ATL5
  • Weight
    158.0 lb
  • Manufacturer
    Suzuki
  • Country of Manufacture
    Thailand
  • Horsepower
    30 HP
  • Shaft Length
    20" (Long)
  • Steering
    Remote
  • Starting
    Electric
  • Trim & Tilt
    Power Trim & Tilt
  • Fuel Delivery
    EFI
  • Fuel Tank
    External
  • Cylinder(s)
    3
  • Displacement
    29.8 (489)
  • Bore and Stroke
    2.80 x 2.68 ()
  • RPM Range
    5300 - 6300 RPM
  • Ignition System
    Digital CDI
  • Induction Scavenging
    SOHC
  • Valves per Cylinder
    4
  • Fuel Type
    Unleaded Gasoline (87 octane)
  • Oil Type
    SAE 10W-30 or SAE 10W-40
  • Oil Capacity
    1.6 (1.5)L
  • Lubrication
    Wet Sump; Trochoid Type Cam-Driven Oil Pump
  • Alternator
    Electric 12V 14A
  • Cooling System
    Water-Cooled
  • Saltwater Rated
    Yes
  • Gear Ratio
    2.09:1
  • Gear Shift
    Forward-Neutral-Reverse (front-mounted lever)
  • Propeller
    3 x 10.25 x 12
  • Internal Battery
    No

Features
  • Battery-Less Electronic Fuel Injection
  • Easy Start - Recoil Starter
  • Lean Burn Control
  • Over-Rev. Limiter
  • Low Oil Pressure Caution
  • Digital CDI
  • Fresh Water Flushing System
  • Suzuki Anti-Corrosion System
  • Suzuki's Newest 5-Year Manufacturer Warranty

Shaft Length Guide

Learn More

Direct Intake And Engine Cover Ventilation

Direct Intake And Engine Cover Ventilation

A smoother, cooler airflow to the direct intake system is made possible by a revised engine cover design, which increases engine running efficiency. Together with a newly built air cleaner, the engine produces more power from a smaller displacement. The rotating flywheel lowers engine cover temperatures by venting warm air from the recoil cover, inner air intake, and engine top cover.

First In Class With Roller Rocker Arms

First In Class With Roller Rocker Arms

These are the first outboards in their categories to use a roller with internal bearings on the cam slipper surface for both the intake and exhaust valves. The roller converts the contact between the camshaft and rocker arm from a sliding to a rolling movement, which reduces friction during rocker arm operation.
