SKU: 67130-89L40

Suzuki Remote Control Parts Set 67130-89L40 - Tiller to Remote Conversion Kit for DF9.9B/DF15A/DF20A

$72001 USD

In the Box
  • 13513-89L10 - ROD THROTTLE
  • 19120-99J11 - LEVER THROTTLE CONTROL
  • 19122-99J00 - LEVER INTERLINK THROTTLE NO.2
  • 19131-89L00 - CONNECTOR (2)
  • 19148-89L10 - LEVER INTERLINK THROTTLE NO.1
  • 19150-89L00 - BRACKET THROTTLE LEVER
  • 19185-99J00 - SPRING THROTTLE LEVER
  • 21110-89L10 - LEVER CLUTCH
  • 23115-89L10 - LINK CLUTCH LEVER
  • 36610-89LN0 - HARNESS ASSY WIRING
  • 36618-43410 - CAP OIL PRESSURE SWITCH
  • 09481-10501 - FUSE (10A)
  • 09481-30501 - FUSE (30A)
  • 37163-89L00 - PLUG STARTING SWITCH HOLE
  • 41130-89L00 - SHAFT CLAMP BRACKET
  • 43755-99J01 - ATTACHMENT STEERING BRACKET
  • 43759-89L00 - HOLDER DRAIN HOSE
  • 45247-94J00 - PIN (2)
  • 55118-91J00 - WASHER 8.5X16X1.2 (2)
  • 61124-89L50 - GROMMET R/CON CABLE
  • 67340-89L10 - HOLDER R/CON CABLE
  • 67467-89J01 - CONNECTOR (2)
  • 09108-08286 - BOLT STUD (2)
  • 09116-06225 - BOLT 6X16
  • 09159-08059 - NUT M8 (2)
  • 09159-22009 - NUT
  • 09160-05029 - WASHER 5.5X12X0.8 (2)
  • 09160-06046 - WASHER 6.5X20X1.5 (2)
  • 09160-06055 - WASHER 7X12X1.0 (2)
  • 09385-06012 - CLIP (2)
  • 09407-14407 - CLAMP L:145 (14)
  • 01547-0616C - BOLT (2)
  • 01550-0612C - BOLT 6X12 (2)
  • 01550-0616C - BOLT 6X16 (2)
  • 32851-93J00 - CUSHION LEAD WIRE
  • 36616-89L30 - HOLDER CONNECTOR
  • 67345-89L10 - PROTECTOR R/CON CABLE HOLDER
  • 09409-10304 - CLIP
  • 09407-20405 - CLAMP L:202 (2)
  • 32890-89L20 - HOLDER ELECTRIC PARTS
  • 09320-09016 - CUSHION 9X18X9.5
  • 09320-08051 - CUSHION 8.4X18X6
  • 09169-06102 - WASHER
  • 09169-06103 - WASHER
  • 36612-89L00 - CUSHION FUSE CASE
  • 36612-89L10 - CUSHION NEUTRAL SW CONNECTOR
  • 61827-89L10 - HOLDER SIDE COVER
  • 09403-14416 - CLAMP
  • 09116-06223 - BOLT 6X12

Shipping & Delivery Times

Delivery time depends on the stock status shown on the product page:

In Stock (green indicator) — Your order ships from our warehouse and arrives within 2–7 business days, depending on your location.

Ships in 3–6 Days (orange indicator) — This item isn't currently in our warehouse. We place the order with our supplier right away, and once we receive it, it ships to you and arrives within 2–7 business days.

Please note: Delivery times to Alaska, Hawaii, and other remote locations may be longer, and additional shipping surcharges apply.

For more Detail - Click Here

What Is This Kit?

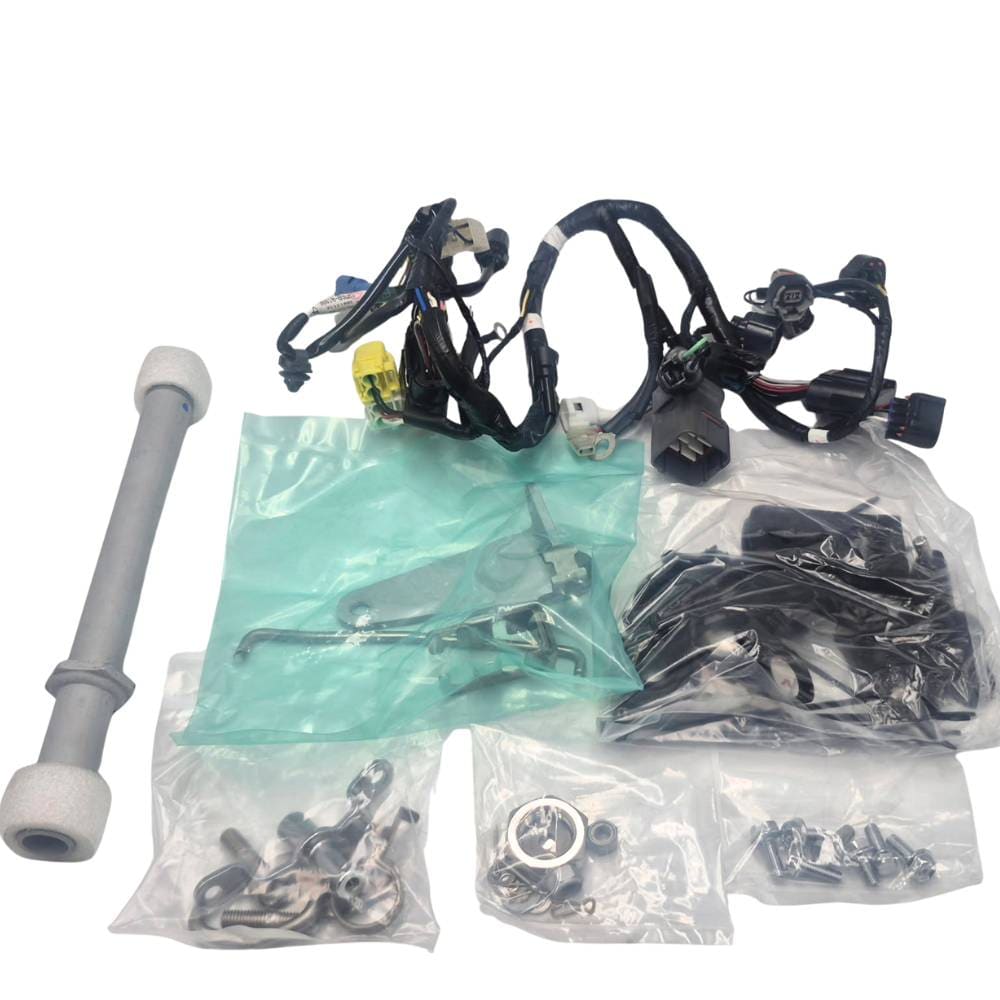

This is the official Suzuki OEM remote control parts set (67130-89L40) that converts a tiller-steered DF9.9B, DF15A or DF20A outboard to remote control operation. It contains the engine-side linkage, brackets, wiring harness and mounting hardware needed for the conversion: 49 Suzuki part numbers, 76 pieces in total.

67130-89L40 replaces the earlier 67130-89L23 kit.

Converting from tiller to remote gives you throttle, shift and steering control from the helm, for center console, side console and dash-mount setups. This is the factory solution, not an aftermarket workaround.

Compatible Models

Models Serial Range
DF9.9B 440001 and up
DF15A 440001 and up
DF20A, DF20ATH 440001 and up

Please check your model code and serial number on your motor's ID plate before ordering. Not sure? Send us your model and serial number and we'll confirm fitment.

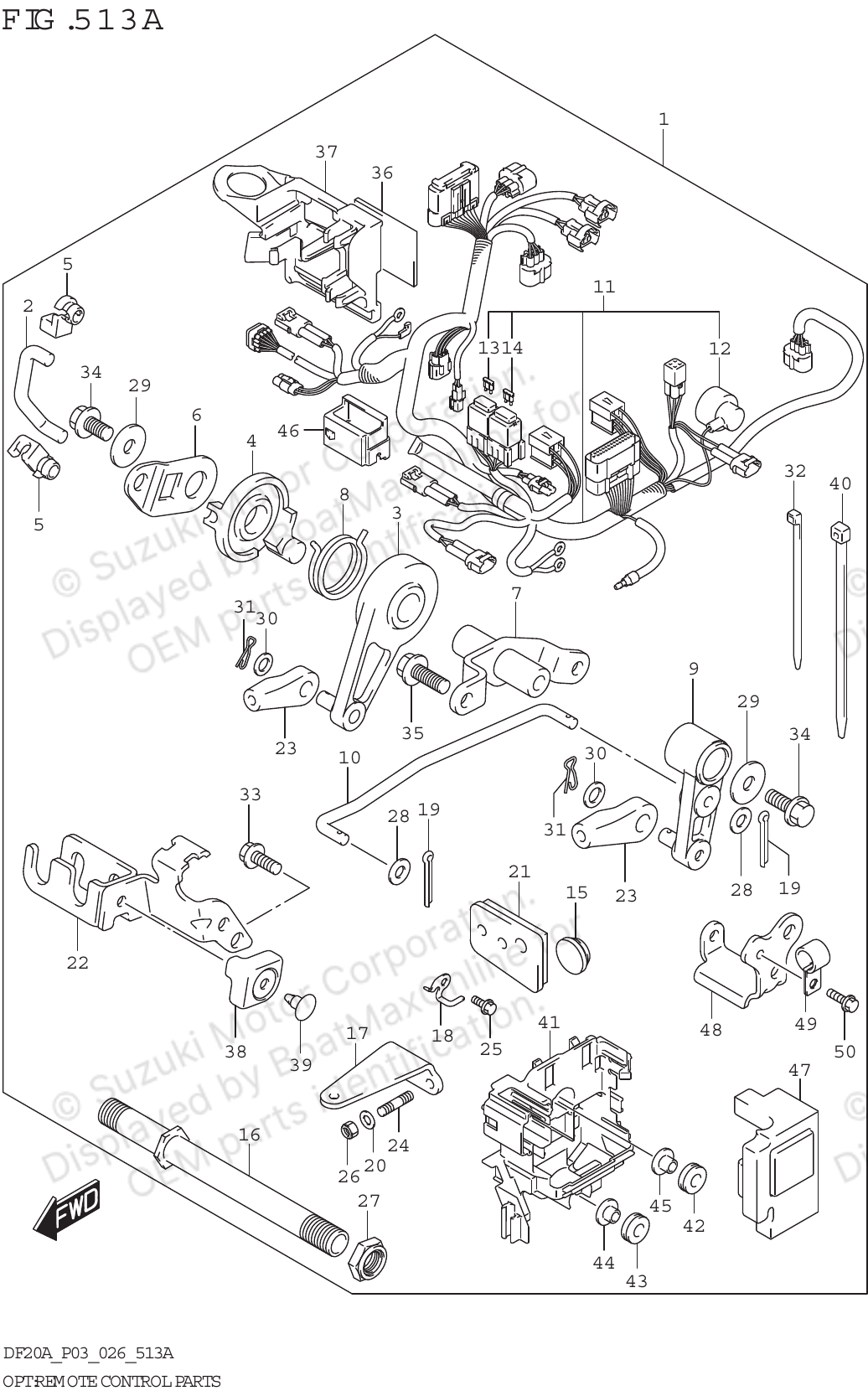

What's Included

Part Number Description Qty
Throttle and Shift Linkage
13513-89L10 Throttle rod 1
19120-99J11 Throttle control lever 1
19122-99J00 Throttle interlink lever No. 2 1
19148-89L10 Throttle interlink lever No. 1 1
19150-89L00 Throttle lever bracket 1
19185-99J00 Throttle lever spring 1
19131-89L00 Connector 2
21110-89L10 Clutch lever 1
23115-89L10 Clutch lever link 1
Steering and Mounting
43755-99J01 Steering bracket attachment 1
41130-89L00 Shaft clamp bracket 1
61124-89L50 Remote control cable grommet 1
67340-89L10 Remote control cable holder 1
67345-89L10 Remote control cable holder protector 1
43759-89L00 Drain hose holder 1
61827-89L10 Side cover holder 1
Electrical
36610-89LN0 Wiring harness assembly 1
36618-43410 Oil pressure switch cap 1
09481-10501 Fuse, 10A 1
09481-30501 Fuse, 30A 1
67467-89J01 Connector 2
36616-89L30 Connector holder 1
32890-89L20 Electric parts holder 1
32851-93J00 Lead wire cushion 1
36612-89L00 Fuse case cushion 1
36612-89L10 Neutral switch connector cushion 1
09320-09016 Cushion, 9x18x9.5 1
09320-08051 Cushion, 8.4x18x6 1
37163-89L00 Starting switch hole plug 1
Hardware
09116-06225 Bolt, 6x16 1
09116-06223 Bolt, 6x12 1
01547-0616C Bolt 2
01550-0612C Bolt, 6x12 2
01550-0616C Bolt, 6x16 2
09108-08286 Stud bolt 2
09159-08059 Nut, M8 2
09159-22009 Nut 1
55118-91J00 Washer, 8.5x16x1.2 2
09160-05029 Washer, 5.5x12x0.8 2
09160-06046 Washer, 6.5x20x1.5 2
09160-06055 Washer, 7x12x1.0 2
09169-06102 Washer 1
09169-06103 Washer 1
45247-94J00 Pin 2
09385-06012 Clip 2
09409-10304 Clip 1
09407-14407 Clamp, L:145 14
09407-20405 Clamp, L:202 2
09403-14416 Clamp 1

What Is NOT Included

This kit does not include the remote control box, the throttle and shift cables, or the steering system (helm and steering cable). Those are sold separately.

Installation Overview

  1. Confirm your model code and serial number against the compatibility table above.
  2. Remove the tiller handle assembly following the Suzuki service manual procedure.
  3. Install the steering bracket attachment, throttle lever bracket and linkage from this kit.
  4. Route and connect the wiring harness to the engine's electrical system.
  5. Connect the throttle and shift cables (sold separately) to the throttle control lever and clutch lever.
  6. Mount the remote control box at the helm and connect the cables per the Suzuki installation guide.
  7. Test throttle, shift and neutral before running the boat.

Suzuki OEM Part Number: 67130-89L40 (replaces 67130-89L23)

Genuine Suzuki OEM part from BoatMax Online, your Authorized Suzuki Marine Dealer.

Frequently Asked Questions

Does this replace 67130-89L23?

Yes. Suzuki has replaced 67130-89L23 with 67130-89L40, so this is the kit Suzuki now supplies for DF9.9B, DF15A and DF20A models from serial 440001 and up. For older motors, send us your model and serial number and we'll confirm the right kit.

What additional parts do I need to complete the conversion?

You will need a remote control box (sold separately), throttle and shift cables in the correct length for your installation, a steering helm and cable, and any helm-side wiring harness required by your control box.

Can I use this kit to convert a DF20A on a pontoon boat?

Yes, this is a common application. Make sure you order throttle, shift and steering cables in the correct length for your helm-to-engine distance.
