SKU: 67130-89L23

Suzuki Remote Control Parts Set - Tiller to Remote Conversion Kit for DF9.9B/DF15A/DF20A

$75099 USD

Fits:

  • DF9.9B - (2005 to Current)
  • DF15A - (2005 to Current)
  • DF20A - (2005 to Current)

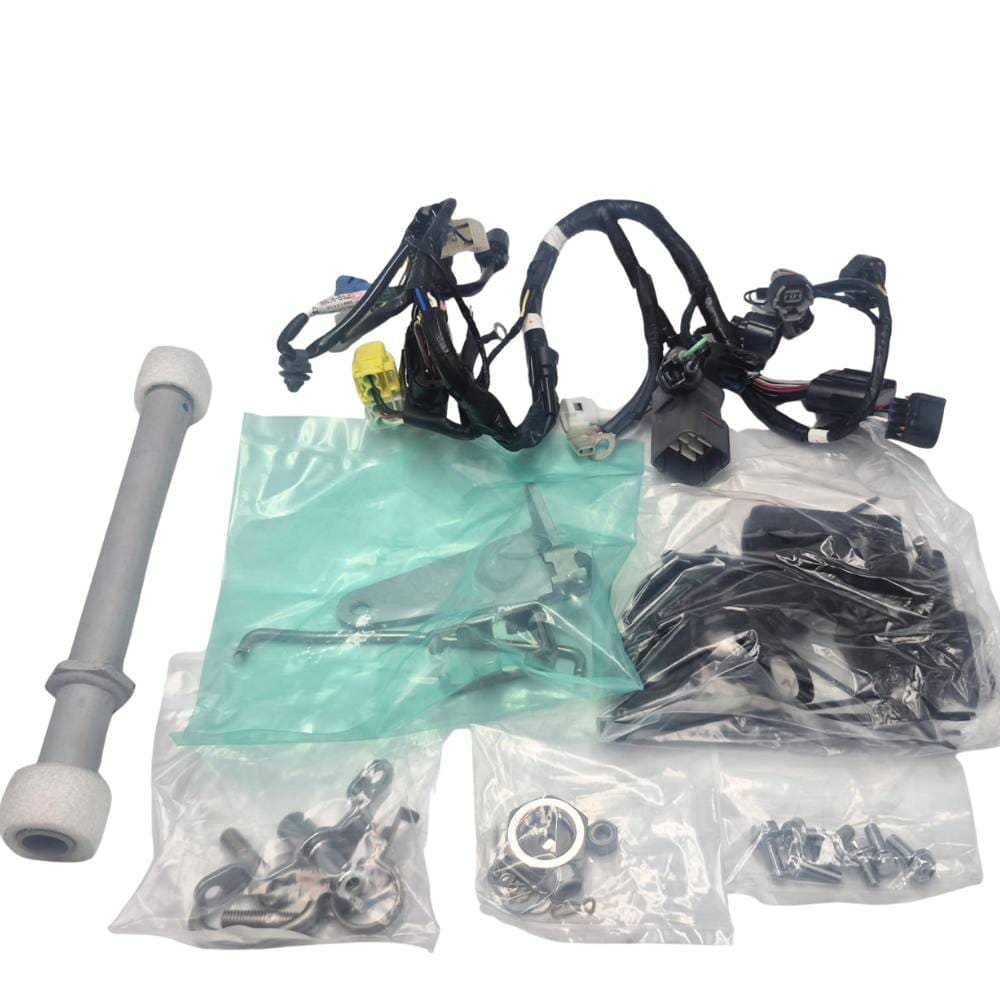

In the Box
  • 13513-89L10 - ROD THROTTLE
  • 19120-99J11 - LEVER THROTTLE CONTROL
  • 19122-99J00 -LEVER INTERLINK THROTTLE NO.2
  • 19131-89L00 - CONNECTOR (2)
  • 19148-89L10 - LEVER INTERLINK THROTTLE NO.1
  • 19150-89L00 - BRACKET THROTTLE LEVER
  • 19185-99J00 - SPRING THROTTLE LEVER
  • 21110-89L10 - LEVER CLUTCH
  • 23115-89L10 - LINK CLUTCH LEVER
  • 6610-89LH1 - HARNESS ASSY WIRING
  • 36618-43410 - CAP OIL PRESSURE SWITCH
  • 09481-10501 - FUSE
  • 09481-30501 - FUSE
  • 37163-89L00 - PLUG STARTING SWITCH HOLE
  • 41130-89L00 - SHAFT CLAMP BRACKET 1
  • 43755-99J01 - ATTACHMENT STEERING BRACKET
  • 43759-89L00 - HOLDER DRAIN HOSE
  • 09204-01002 - PIN (2)
  • 09160-08082 - WASHER (2)
  • 61124-89L50 - GROMMET R/CON CABLE
  • 67340-89L10 - HOLDER R/CON CABLE
  • 67467-89J01 - CONNECTOR (2)
  • 09108-08286 - STUD BOLT (2)
  • 09116-06225 - BOLT
  • 09159-08059 - NUT (2)
  • 09159-22006 - NUT (2)
  • 09160-05029 - WASHER (2)
  • 09160-06046 - WASHER (2)
  • 09160-06055 - WASHER (2)
  • 09385-06012 - CLIP (2)
  • 09407-14407 - CLAMP (13)
  • 01547-06167 - BOLT (2)
  • 01550-06127 - BOLT (2)
  • 01550-06167 - BOLT (2)
  • 32851-93J00 - CUSHION LEAD WIRE
  • 36616-89L30 - HOLDER CONNECTOR
  • 67345-89L10 - PROTECTOR R/CON CABLE HOLDE
  • 09409-10304 - CLIP

Shipping & Delivery Times

Delivery time depends on the stock status shown on the product page:

In Stock (green indicator) — Your order ships from our warehouse and arrives within 2–7 business days, depending on your location.

Ships in 2–4 Days (orange indicator) — This item isn't currently in our warehouse. We place the order with our supplier right away, and once we receive it, it ships to you and arrives within 2–7 business days.

Please note: Delivery times to Alaska, Hawaii, and other remote locations may be longer, and additional shipping surcharges apply.

For more Detail - Click Here

What Is This Kit?

This is the official Suzuki OEM parts set that converts a tiller-steered DF9.9B, DF15A, or DF20A outboard to full remote control operation; side-console or dash-mount throttle/shift, remote steering, and integrated electrical control. It contains 43 genuine Suzuki components: everything from the throttle rod and clutch linkage to the wiring harness, fuses, and all mounting hardware.

Converting from tiller to remote steering gives the operator full front-of-boat control, enabling center console, side console, and twin-station installations. This is the factory solution; not an aftermarket workaround.

Compatible Models

Model

Years Compatible

Notes

DF9.9B

2005 – Current

All variants (manual/electric start)

DF15A

2005 – Current

All shaft lengths

DF20A

2005 – Current

All shaft lengths and variants



What's Included; 43 OEM Components

Control Components:

·       Throttle rod

·       Throttle control lever

·       Interlink levers (x2)

·       Clutch lever

·       Clutch link

·       Steering bracket

·       Throttle bracket

Electrical / Wiring:

·       Wiring harness assembly

·       Fuses; 2 types

·       Starting switch plug

·       Connectors

·       Lead wire cushion

Hardware (13 pieces):

·       Bolts, nuts, washers, studs

·       Clips and clamps

·       Retention pins

Specialized Parts:

·       Oil pressure switch cap

·       Drain hose holder

·       Remote control cable grommet and holder

·       Cable protector

What Is NOT Included

This parts set does not include the remote control box, throttle/shift cables, or steering helm; those are sold separately. This kit provides the engine-side mounting and linkage components required for the conversion.

Installation Overview

17.  Verify your engine model and year against the compatibility table above before purchasing.

18.  Remove the tiller handle assembly from the engine following Suzuki service manual procedures.

19.  Install the steering bracket, throttle bracket, and control linkage components from this kit.

20.  Route and connect the wiring harness to the engine's electrical block.

21.  Connect throttle/shift cables (sold separately) to the throttle control lever and clutch lever.

22.  Mount remote control box at the helm and connect cables per Suzuki installation guide.

23.  Test all controls; throttle, shift, and neutral lock; before water operation.

Frequently Asked Questions

Does this kit work on DF9.9B models manufactured before 2005?

No. This kit (67130-89L23) is confirmed for DF9.9B, DF15A, and DF20A models from 2005 to current. Pre-2005 models use a different engine architecture and require a different conversion set. Contact Boat Max Online for pre-2005 compatibility.

What additional parts do I need to complete the conversion?

You will need: a remote control box (sold separately), throttle/shift cables in the correct length for your installation, a steering helm and cable or hydraulic steering system, and any helm-side wiring harness required by your control box model.

Can I use this kit to convert a DF20A on a pontoon boat?

Yes, this is a common application. The DF20A with remote steering works well on lightweight pontoons and fishing pontoons. Ensure you have the correct cable lengths for your pontoon's helm-to-engine distance.

Will this conversion affect my Suzuki warranty?

Conversions performed using genuine Suzuki OEM parts by an authorized dealer or qualified marine technician do not void your warranty. Using aftermarket conversion parts may affect warranty coverage.
