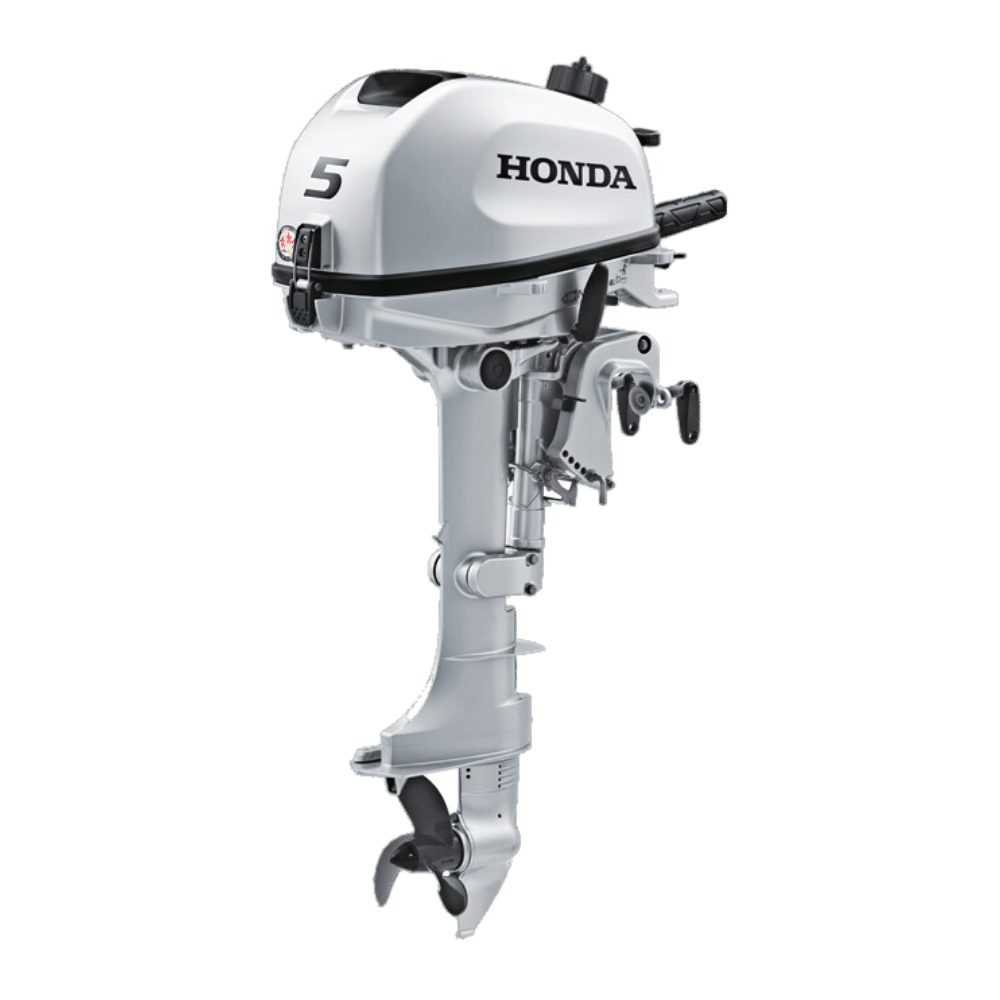

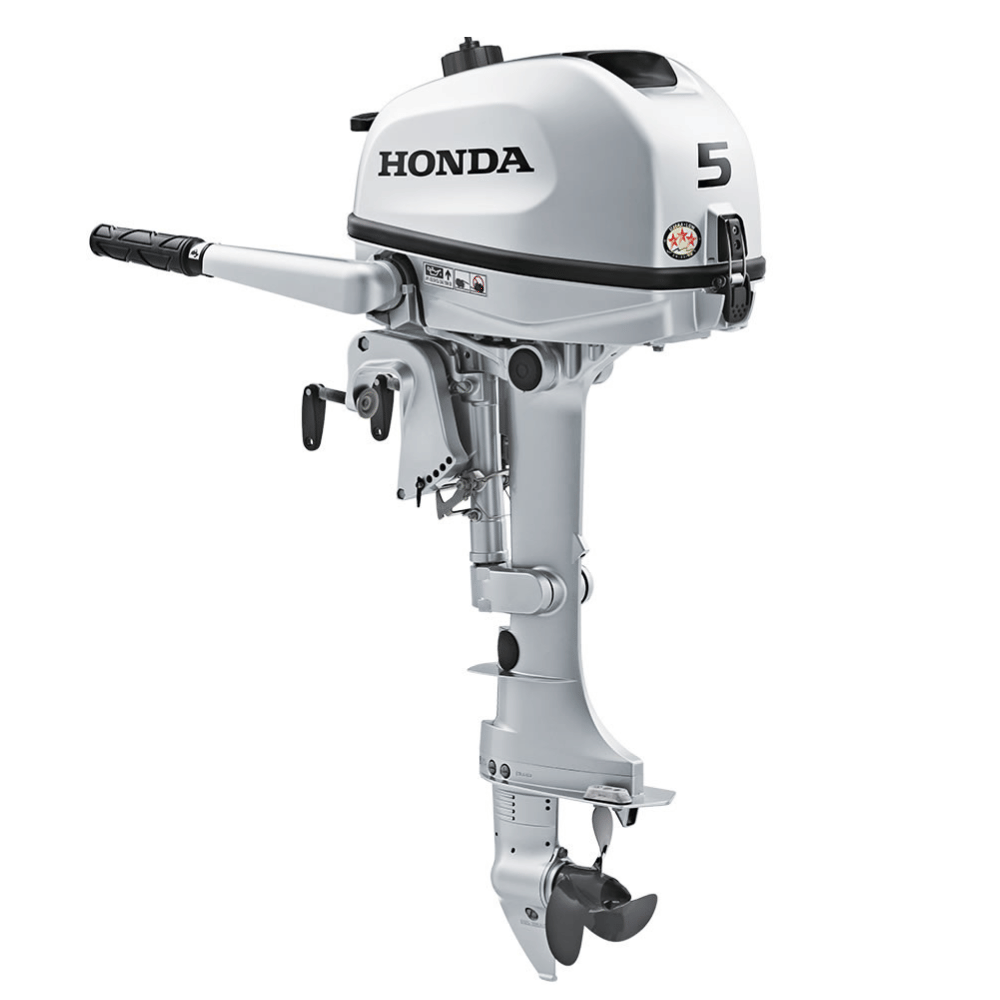

Honda 5 HP Outboard Motor - Model BF5DHSHNA

(10)
$1,57300 USD $1,59000

4-STROKE OUTBOARD OIL INCLUDED ✓

5 YEAR WARRANTY & REGISTRATION INCLUDED ✓

LIFT-GATE SERVICE INCLUDED ✓

MSRP: $1,590

Shaft

15" (Short)

Weight

59.5 lb

Starting

Manual

Steering

Tiller

Trim & Tilt

Manual

What more could you ask for in a lightweight, reliable, and silent portable outboard? Extreme portability and small weight characterize the BF5D. It's lightweight, making it perfect for canoes, jon boats, and other lightweight craft.

And with Honda's legendary reliability and comfort features, you'll be set for years of relaxing on the lake.

Shipping

(2-5 Business Days) with UPS Shipping

In the Box
  • .39 Gallon Internal Fuel Tank
  • Owner's Manual
  • Propeller
  • Tool Kit
  • Honda's 5-Year Manufacturer Warranty

Specifications
  • Model
    BF5DHSHNA
  • Weight
    59.5 lb
  • Manufacturer
    Honda
  • Country of Manufacture
    China
  • Horsepower
    5 HP
  • Shaft Length
    15" (Short)
  • Steering
    Tiller
  • Starting
    Manual
  • Trim & Tilt
    Manual
  • Fuel Delivery
    Carburetor
  • Fuel Tank
    Internal (1.5 L) with external connector
  • Cylinder(s)
    1
  • Displacement
    127 cc (7.8 cubic inches)
  • Bore and Stroke
    60 x 45 mm (2.4 x 1.8 in.)
  • RPM Range
    5000 - 6000 RPM
  • Ignition System
    Digital CDI
  • Induction Scavenging
    OHV
  • Valves per Cylinder
    2
  • Fuel Type
    Unleaded Gasoline (87 octane)
  • Oil Type
    FC-W 10W-30
  • Oil Capacity
    .56 US qt. (18 oz.)
  • Lubrication
    Wet Sump
  • Alternator
    OPTIONAL 6 amp (installation required)
  • Cooling System
    Water-Cooled
  • Saltwater Rated
    Yes
  • Gear Ratio
    2.08:1
  • Gear Shift
    Forward, Neutral, Reverse
  • Propeller
    7-7/8" Dia. x 6-3/4" Pitch 3-Blade Aluminum
  • Internal Battery
    No

Features
  • Reliable, efficient 4-stroke design
  • Lightweight and Compact
  • Convenient Fold-Down Tiller Handle
  • Large Displacement Engine for more power
  • Twist grip throttle - more comfortable to use
  • 5-Year Warranty - unmatched peace of mind
  • 4-Front Corrosion Protection System - Fights the elements
  • Digital CD Ignition - easy starting
  • Low Oil Warning and RPM Reduction Alerts
  • Easy to carry and install
  • New Isolation Mounts - Reduced Vibration for Comfort and Durability
  • Shallow Water Drive
  • F-N-R Gearshift
  • Wet Sump Lubrication - better durability
  • Ultra Low 3 Star CARB Emissions
  • Optional 6 amp charging system
  • Decompression Mechanism for easy starts
  • Easy One-Push and Release Stop Button
  • 1.5L internal tank (only) and external connector
