Suzuki 6 HP Outboard Motor - Model DF6AS5
Shaft
15" (Short)
Weight
52.0 lb
Starting
Manual
Steering
Tiller
Trim & Tilt
Manual
With unrivaled four-stroke outboard engine performance and fuel efficiency, the DF6A redefines portable outboards. The DF6A is compact and lightweight, making it easy to transport while delivering surprising low- and mid-range torque for quick acceleration. The DF6A is ready for whatever comes next, is completely portable, and will fit on almost any vessel. Change the way you use your DF6A, whether it's as a duck boat or a paddle board. This is the engine for you if you don't want to be tied down.
Shipping Info
Shipping Info
What's In the Box
What's In the Box
- .26 gal. Integral Fuel Tank
- Owner's Manual
- Suzuki's Newest 5-Year Manufacturer Warranty
- Aluminum Prop
- Tool Kit

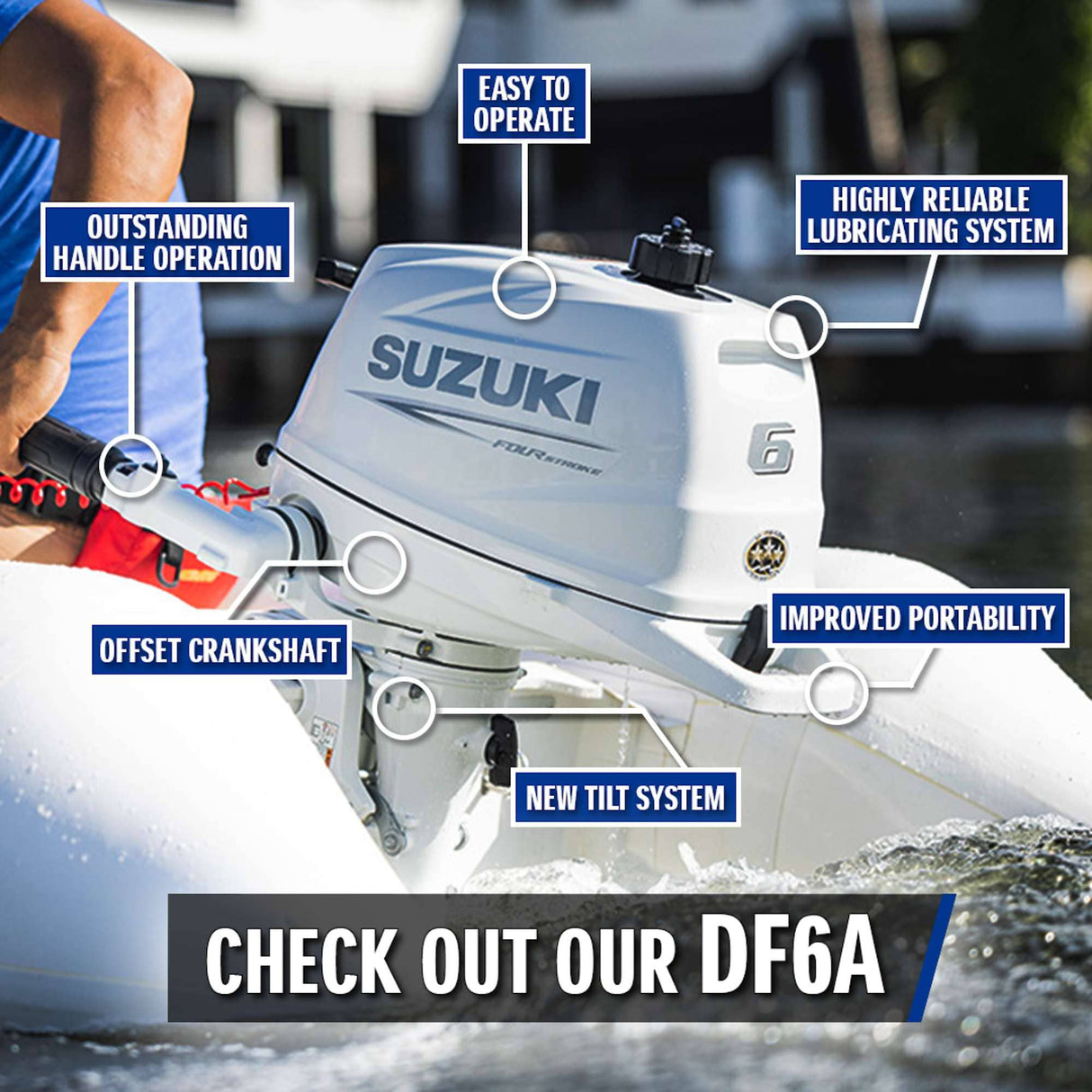

Features
Features
- Compact and Lightweight Design
- 3 Way Storage: Stbd, Port, or Front
- Saltwater Rated
- Multi-Layer Corrosion Protection
- Quiet Below-the-Water Exhaust
- Fold-Down Tiller Handle
- Rubber Mount Bracket System
- Twist-Grip Throttle with Tensioner
- Large Carrying Handle
- Large Gear Shift Lever
- Digital CDI Ignition for Quick Starting
- Larger Carburetor for Additional HP
- 3-Star Ultra-Low Emission Rating
- Shallow Water Drive (2 positions)
- 5 Trim Positions w/Tilt Lock Pin
- Over-Rev Limiter Protection
- Throttle Tension Control
- Steering Friction Tension Control
- 90° Left / Right Turning for Tight Spots
- Emergency Lanyard Stop Switch
- Built-in .26 Gal. Fuel Tank (35 min. @ WOT)
- External Tank Ready Connection on Engine
- 3-Blade Aluminum Propeller
- Suzuki's Newest 5-Year Manufacturer Warranty
Specifications
Specifications
MODEL | DF6AS5 |
---|---|
WEIGHT | 52.0 lb |
MANUFACTURER | Suzuki |
COUNTRY OF MANUFACTURE | Thailand |
HORSEPOWER | 6HP |
SHAFT LENGTH | 15" (Short) |
STEERING | Tiller |
STARTING | Manual |
TRIM & TILT | Manual |
FUEL DELIVERY | Carburetor |
FUEL TANK | Internal |
CYLINDER(S) | 1 |
DISPLACEMENT | 138 cc (8.4 cubic inches) |
BORE AND STROKE | 2.38 x 1.89 inches |
FULL THROTTLE RPM RANGE | 4750-5750 RPM |
IGNITION SYSTEM | Digital Capacitor Discharge Ignition System |
INDUCTION SCAVENGING | OHV |
VALVES PER CYLINDER | 2 |
FUEL TYPE | Unleaded Gasoline (87 octane) |
FUEL TANK / FUEL LINE | .26 US Gallon Integral Fuel Tank |
OIL TYPE | SAE 10W-30 or SAE 10W-40 |
OIL CAPACITY | 24 fl oz. (700 mL) |
LUBRICATION | Wet Sump |
ALTERNATOR | Optional 12V 5A (installation required) |
COOLING SYSTEM | Water-Cooled |
SALTWATER RATED | Yes |
GEAR RATIO | 1.92:1 |
GEAR SHIFT | Forward-Neutral-Reverse (starboard side lever) |
PROPELLER | 3-Blade Aluminum 7.5" Dia x 7.0 " Pitch |
INTERNAL BATTERY | No |
