Suzuki Digital Gauge Kit DF9.9B/15A/20A/25A/30A

Suzuki Digital gauge Kit for Portable Suzuki Outboard.

How to Set Up

1. Connect Wire interface to engine SDS Plug (Underneath the cowling next to the computer 4 Pin. male Connector)
2. Run wire to Console and plug in your the mechanical adapter
3. Plug in the mechanical adapter into the SMG 4 gauge
4. With the engine and gauge turned on go to Initial Setting
5. Once on Initial setting go to position and go to gauge setting
6. Change the communication from CAN2 to KLINE
7. Finish Initial Setting to fit your needs

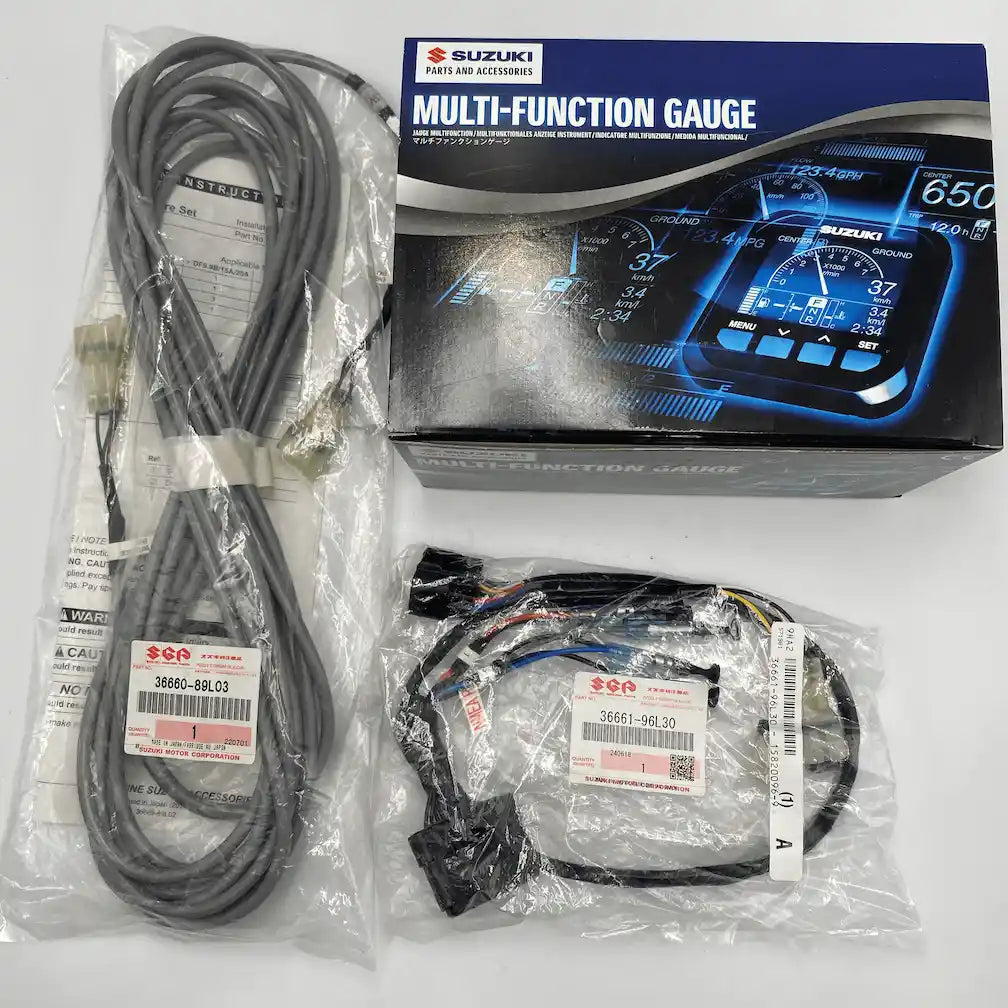

Includes

Engine to Interface Wire Set 36660-89L03

Mechanical Adapter 36661-96L30

SMG 4 Gauge 34011-96L44

*Part numbers can be Superseded at Suzuki's Discretion



Will not Provide Speed data without GPS Receiver and a NMEA 2000 Connection
