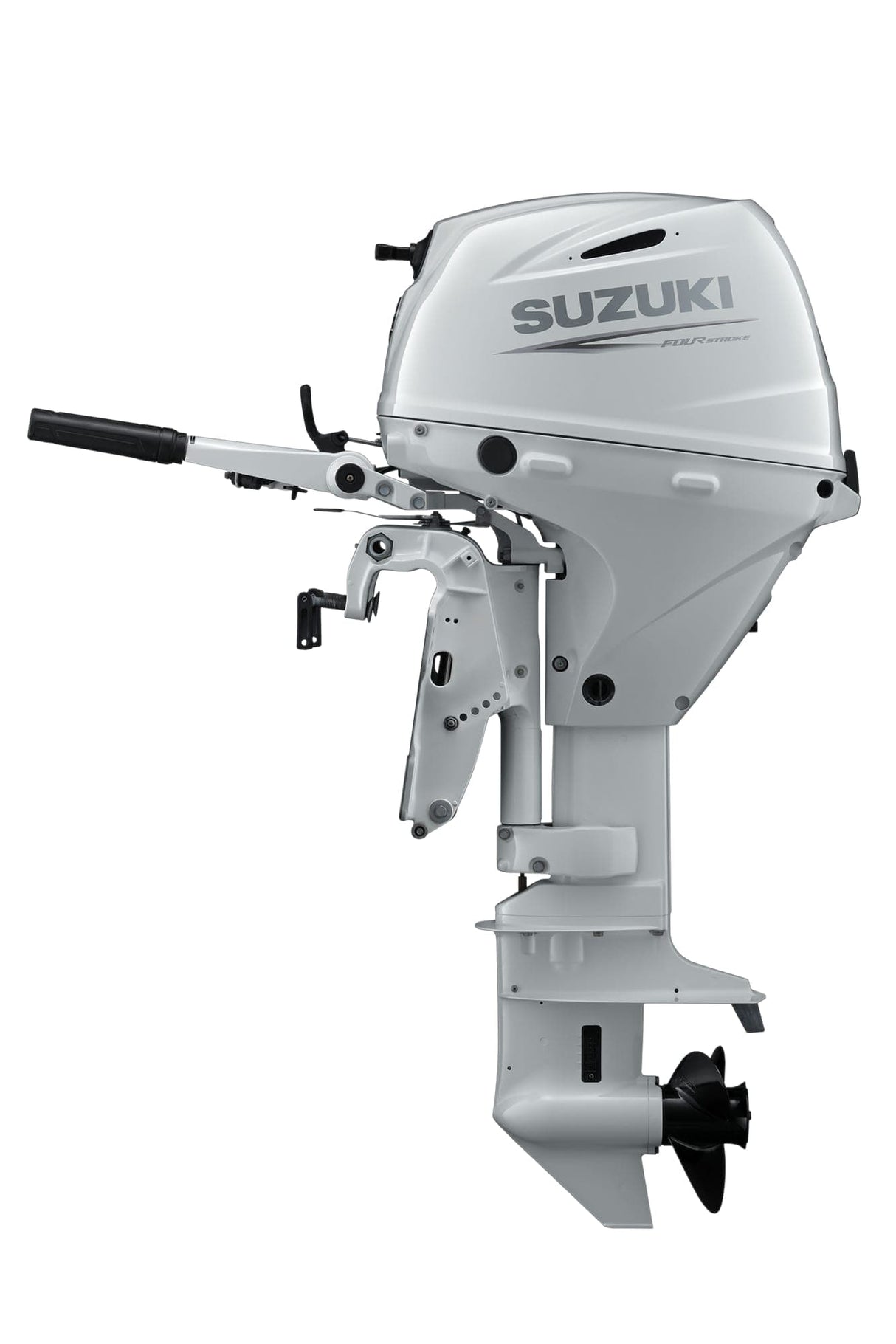

Suzuki 25 HP Outboard Motor - Model DF25ATHLW5

(1)
$4,46500 USD $4,56500

4-STROKE OUTBOARD OIL INCLUDED ✓

5 YEAR WARRANTY & REGISTRATION INCLUDED ✓

LIFT-GATE SERVICE INCLUDED ✓

MSRP: $6,190

Shaft

20" (Long)

Weight

163.0 lb

Starting

Electric

Steering

Tiller

Trim & Tilt

Power Trim & Tilt

Distinguish yourself with the 25 ATHLW5, a beacon of style and performance powered by the DF25A EFI. Its elegant white color, paired with a 20" long shaft and power trim & tilt, showcases its premium pedigree. A member of the "Next Generation" four-stroke outboards, it promises instantaneous starts, unmatched acceleration, and optimal fuel efficiency. Remarkably lightweight, it stands as a testament to our commitment to quality and innovation.

Shipping

(3-9 Business Days) with Freight Shipping

In the Box
  • 6 gal Fuel Tank
  • Fuel Line
  • Owner's Manual
  • Aluminum Propeller
  • Tool Kit
  • Suzuki's Newest 5-Year Manufacturer Warranty

Specifications
  • Model
    DF25 ATHLW5
  • Weight
    163.0 lb
  • Manufacturer
    Suzuki
  • Country of Manufacture
    Thailand
  • Horsepower
    25 HP
  • Shaft Length
    20" (Long)
  • Steering
    Tiller
  • Starting
    Electric
  • Trim & Tilt
    Power Trim & Tilt
  • Fuel Delivery
    EFI
  • Fuel Tank
    External
  • Cylinder(s)
    3
  • Displacement
    29.8 (489)
  • Bore and Stroke
    2.80 x 2.68 ()
  • RPM Range
    5000 - 6000 RPM
  • Ignition System
    Digital CDI
  • Induction Scavenging
    SOHC
  • Valves per Cylinder
    4
  • Fuel Type
    Unleaded Gasoline (87 octane)
  • Oil Type
    SAE 10W-30 or SAE 10W-40
  • Oil Capacity
    1.6 (1.5)L
  • Lubrication
    Wet Sump; Trochoid Type Cam-Driven Oil Pump
  • Alternator
    Manual 12V 14A / Electric 12V 14A
  • Cooling System
    Water-Cooled
  • Saltwater Rated
    Yes
  • Gear Ratio
    2.09:1
  • Gear Shift
    Forward-Neutral-Reverse (front-mounted lever)
  • Propeller
    3 x 10.25 x 11
  • Internal Battery
    No

Features
  • Battery-Less Electronic Fuel Injection
  • Easy Start - Recoil Starter
  • Lean Burn Control
  • Over-Rev. Limiter
  • Low Oil Pressure Caution
  • Digital CDI
  • Fresh Water Flushing System
  • Suzuki Anti-Corrosion System
  • Suzuki's Newest 5-Year Manufacturer Warranty

Shaft Length Guide

Learn More

Direct Intake And Engine Cover Ventilation

Direct Intake And Engine Cover Ventilation

A smoother, cooler airflow to the direct intake system is made possible by a revised engine cover design, which increases engine running efficiency. Together with a newly built air cleaner, the engine produces more power from a smaller displacement. The rotating flywheel lowers engine cover temperatures by venting warm air from the recoil cover, inner air intake, and engine top cover.

First In Class With Roller Rocker Arms

First In Class With Roller Rocker Arms

These are the first outboards in their categories to use a roller with internal bearings on the cam slipper surface for both the intake and exhaust valves. The roller converts the contact between the camshaft and rocker arm from a sliding to a rolling movement, which reduces friction during rocker arm operation.
