Shaft length is one of those outboard specs that looks simple until you get it wrong. A long shaft outboard motor fits a specific range of transom heights, and putting the wrong shaft length on a boat produces either a propeller that runs too deep and drags, or one that runs too shallow and ventilates every time the hull rises on a wave. Neither situation is subtle. The motor runs noticeably worse, the operator usually knows something is off, and the fix is almost always buying the correct shaft length from the start.

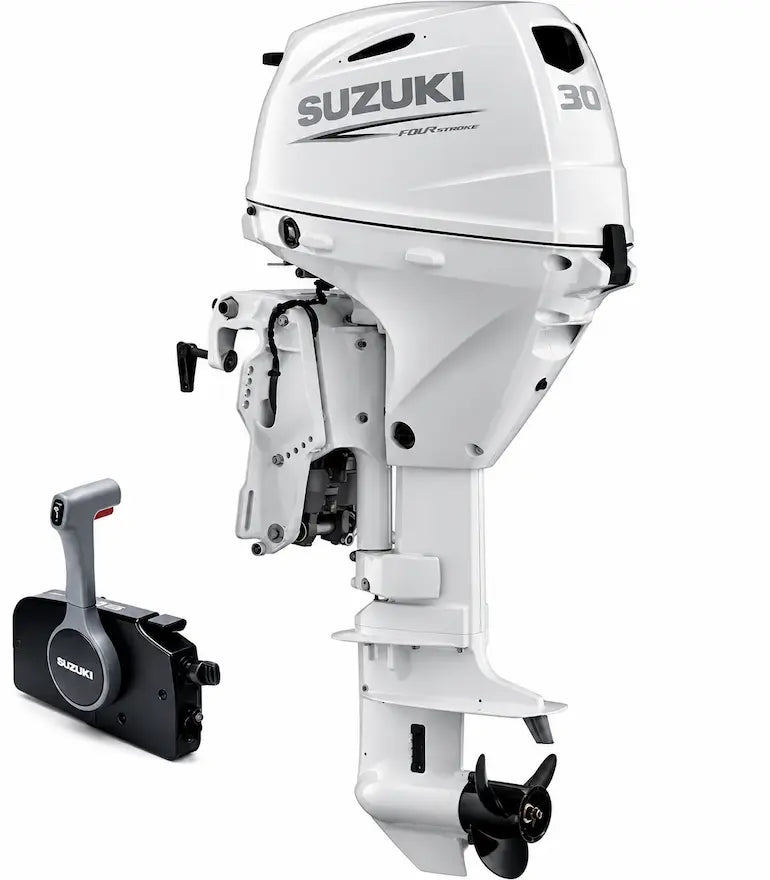

A long shaft outboard motor has a nominal shaft length of 20 inches, measured from the mounting bracket at the top of the clamp to the cavitation plate just above the propeller. This 20-inch dimension is the standard fit for boats with transoms in the 20 to 22-inch height range, which covers a wide category of recreational boats including larger aluminum fishing boats, fiberglass center consoles, bow-riders, and many entry-level fiberglass hulls that sit higher in the water than the small portable boats a short shaft serves.
At BoatMaxOnline, we carry outboard motors across Yamaha, Suzuki, Honda, and other major brands, and shaft length is one of the most common fitment questions we field before a purchase decision. This guide explains what a long shaft outboard motor is designed for, how to confirm it's the right fit for your boat, where the spec comes into play on different hull types, and what changes if you're between shaft length categories.
What a Long Shaft Outboard Motor Is Built For
The 20-inch shaft on a long shaft outboard motor places the propeller at the optimal running depth for boats with transoms between 20 and 22 inches high. At this depth, the cavitation plate sits just below the waterline when the motor is in the run position, and the propeller operates in clean, undisturbed water below the hull's bottom turbulence.
This is the same principle that governs short shaft sizing, just scaled to a taller transom, and the relationship between transom height and shaft length is what determines whether the prop works efficiently or fights the water surface for grip.
Boats in the 14 to 24-foot range with fiberglass hulls and manufactured aluminum fishing boats above 16 feet are the primary applications where a long shaft outboard motor is the designed fit. These boats have higher freeboard than small aluminum jon boats and inflatables, and their transoms reflect that by sitting higher off the waterline.
A motor with a 15-inch short shaft on one of these hulls would position the propeller so high that any wave action, any throttle-induced bow rise, or any loading at the stern would bring the prop dangerously close to the surface and cause the ventilation that degrades performance and handling.
The long shaft specification also comes into play on some specialized smaller boats, particularly deep-V hulls designed for rough water where the stern can lift significantly on waves. Even if the transom height of such a hull measures closer to 17 or 18 inches, the dynamic running behavior of the hull at speed may put the prop in a position where it needs the extra shaft depth to stay consistently submerged.
The 20-Inch Shaft: Why That Number
The 20-inch shaft length became the standard for long shaft outboards for the same reason the 15-inch became standard for short shaft: it emerged from the most common transom heights in its category of boats. Recreational fiberglass boats, which grew in popularity through the 1960s and 1970s, were typically designed with transoms in the 20 to 22-inch range, and outboard manufacturers standardized the long shaft dimension to serve that market.
The 5-inch difference between short and long shaft isn't arbitrary; it's the increment that bridges the transom height gap between small flat-water boats and the broader category of recreational day boats and fishing boats.
A long shaft outboard motor running on the correct transom sits with the cavitation plate approximately one to two inches below the waterline at rest, which gives the propeller a consistent water column to work across different loading conditions and sea states. When the boat is trimmed down slightly at the bow or when the stern is loaded with passengers and gear, the cavitation plate stays submerged.
Running a long shaft outboard motor on a transom that's too low, meaning a boat designed for a short shaft, has predictable consequences. The propeller and lower unit hang deeper than the hull needs them to, which increases drag and reduces ground clearance. In shallow water this becomes an immediate practical problem rather than just a performance one, because the lower unit hits bottom before the hull does.
How to Confirm Your Transom Needs a Long Shaft
Measuring the transom correctly is the most important step before ordering a long shaft outboard motor, and the procedure is the same regardless of hull type. Measure from the top of the transom mounting surface, where the motor clamps or mounting bolts will seat, straight down to the waterline at the center of the transom.
Do this with the boat in the water at a typical load, because the waterline changes with weight distribution and an empty boat on a trailer can give a measurement that's off by an inch or more from the loaded waterline.
A measurement of 20 to 22 inches confirms a long shaft outboard motor as the correct specification. A measurement of 19 inches is at the low end of the gray zone where either a long shaft or a well-shimmed short shaft might work depending on the hull type and intended conditions, but a long shaft is the lower-risk choice.
Check whether the existing motor, if there is one, is a long shaft before assuming your transom needs one. If the boat came from the factory with a motor, the original shaft length is documented in the boat's specification sheet or the outboard installation guide that came with the hull.
Replacement motors should match the original shaft length unless the transom has been modified, and using the original specification as a starting point before measuring is a useful cross-check that catches measuring errors before they become ordering mistakes.
Hull Types That Typically Require a Long Shaft Outboard Motor
Fiberglass center consoles from about 16 feet upward are one of the most common applications for a long shaft outboard motor. These boats are built with transoms designed around the 20-inch specification, and the hull geometry, including the deadrise angle and the running attitude, depends on the propeller sitting at the depth a long shaft provides.
Bow-riders and entry-level fiberglass day boats in the 14 to 20-foot range typically share the same 20-inch transom specification. These hulls are designed for a planing attitude where the bow rises and the stern lifts at speed, and the propeller needs to be positioned deep enough to stay submerged through that transition. A long shaft outboard motor provides the depth margin that keeps thrust consistent from idle through planing and at cruise speed in conditions where the hull is pitching and rolling.
Larger aluminum fishing boats, typically from 16 feet upward in the modified-V and semi-V hull categories, are another strong fit for a long shaft outboard motor. These boats are heavier and more stable than the small jon boats and flat-bottom aluminum fishing boats that use short shaft motors, and their transoms reflect the higher freeboard of a hull designed to carry more payload in less protected water.
The transition from a 14-foot short-shaft aluminum boat to a 16-foot modified-V that needs a long shaft is one of the more common points where buyers discover the shaft length selection question for the first time.
Long Shaft vs. Extra-Long Shaft: Knowing the Difference
The extra-long shaft configuration adds another 5 inches to the 20-inch long shaft, producing a 25-inch shaft designed for boats with transoms from 25 to 27 inches. This category includes larger offshore boats, some pontoon configurations, and hulls with higher freeboard than the recreational day boat category.
Understanding where the long shaft ends and the extra-long shaft begins matters because the same dynamic that causes ventilation on a short shaft transom applies at the upper end of long shaft territory when the transom height approaches 25 inches.
A long shaft outboard motor on a 24-inch transom is running close to the top of its designed range. In calm water with a light load, the propeller may stay deep enough to run without issues. Add a full day's load, a following sea, or sustained high-speed running, and the margin between the prop and the water surface gets thin enough that ventilation becomes a risk.
The extra-long shaft isn't common in the portable or recreational day boat category, but it's relevant for buyers stepping up to a larger boat and encountering it for the first time. If you've been running a long shaft outboard motor on every boat you've owned and your new boat has a significantly taller transom than your previous one, checking the new boat's transom specification before assuming the same shaft length applies is the step that prevents a repeat of the ventilation problem that drives most buyers to research shaft length in the first place.
When Short-Shaft Buyers Move Up
One of the most common scenarios that brings buyers to the long shaft outboard motor category is upgrading from a smaller boat where a short shaft worked fine. The jump from a 14-foot aluminum jon boat to a 17-foot center console or modified-V aluminum boat changes the transom height requirement, and buyers who are used to thinking of shaft length as a secondary spec discover quickly that the new boat doesn't tolerate the wrong length the same way the smaller boat did.
Replacing a motor on an existing boat where the previous motor's shaft length is already known is the simplest fitment scenario. Match the shaft length, check the transom measurement to confirm it's still in the correct range for that specification, and focus the rest of the decision on horsepower, brand, and features.
Where this goes wrong is when the previous motor was the wrong shaft length from the start, and the boat's history of poor performance in chop or difficulty getting on plane was actually a shaft length mismatch rather than an engine power problem.
Boats that have been modified, whether by adding a hydraulic jack plate that changes the effective mounting height, by replacing the transom board with a different dimension, or by adding a setback bracket that positions the motor differently, may have an effective transom height that doesn't match the original boat specification.
If any of these modifications exist on a boat you're buying a replacement motor for, measure the current effective transom height rather than relying on the original specification. The measurement is what matters, not the documentation.
Check Shaft-Length Fit Before Comparing Available Motors
A long shaft outboard motor is the right choice when the transom measurement is in the 20 to 22-inch range, when the hull design calls for a planing propeller that stays submerged in chop and at speed, and when the boat is in the fiberglass day boat, center console, or larger aluminum fishing boat category that the long shaft specification was built around.
Know your transom height before you compare motors, and double-check it against the manufacturer's specified shaft length for any motor you're seriously considering. Manufacturers list the correct transom height range in the motor's specifications, and matching that range to your measurement is the most reliable confirmation available before ordering.
Browse long shaft outboard motor options at BoatMaxOnline to find motors matched to your hull and transom specification, or contact BoatMaxOnline if you'd like help confirming the correct shaft length for your specific boat before you order.
