The outboard lower unit is the part that never gets discussed until something is wrong with it. It hangs below the waterline on every run, takes the physical impact of any debris the propeller or skeg encounters, and houses the mechanical components that transfer engine power into forward, neutral, and reverse motion in the water. Most boat owners can describe how a carburetor works or why oil needs changing, but when it comes to the gearcase, the conversation usually starts with "I think something's wrong" rather than "here's what I've been doing to maintain it."
Understanding what's inside the outboard lower unit and how those components interact changes the way you think about routine maintenance. Gear lube changes stop feeling like a box to tick and start making sense as protection for specific metal surfaces running at speed in a sealed housing. Seal inspection stops being an afterthought and becomes the check that keeps water out of a place where water causes fast, expensive damage. The maintenance steps aren't complicated; they're just more meaningful once you know what they're protecting.
At BoatMaxOnline, we supply lower unit service parts for Yamaha, Suzuki, Honda, and other major outboard platforms, and gear lube questions and seal failures come up consistently across every service season. This guide covers what the outboard lower unit contains, what the gear lube does, what warning signs to watch for, and what a basic service routine actually protects when done on schedule.
What the Outboard Lower Unit Contains

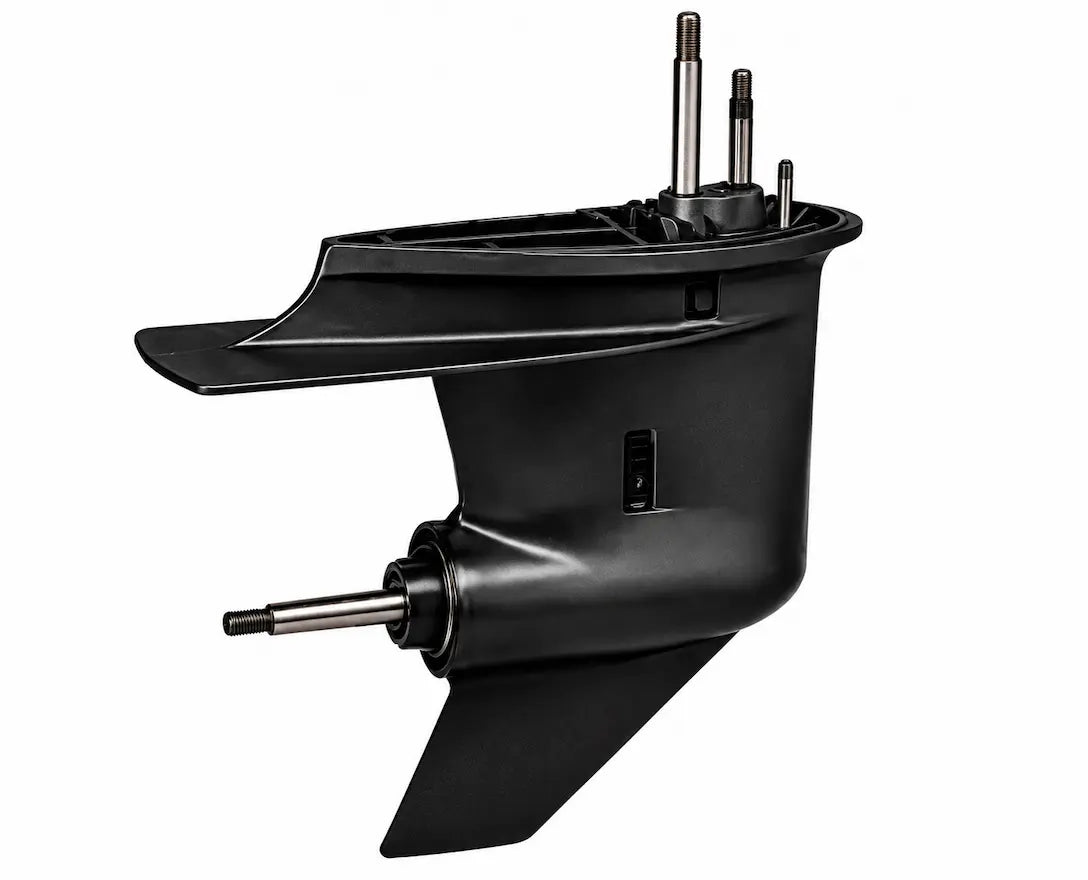

The outboard lower unit sits below the anti-ventilation plate on the outboard mid-section and houses the gear train, the propeller shaft, the water pump, and the seals that keep gear lube in and seawater out. The gear train consists of a set of bevel gears that change the direction of rotation from vertical, driven by the driveshaft coming down from the powerhead, to horizontal along the propeller shaft.
The shift mechanism inside the gearcase is what gives you forward, neutral, and reverse. A dog clutch, driven by the shift rod that runs from the helm shifter down through the mid-section and into the housing, engages with either the forward or reverse gear depending on the shift position.
In neutral, the dog clutch sits between the two gears without engaging either one, and the driveshaft spins without transferring power to the propeller shaft. The precision of this engagement is what determines whether shifts are clean or whether you feel grinding or resistance when moving through gear positions.
The water pump is also housed in the outboard lower unit, just above the gearcase section and driven by the same driveshaft. It sits in its own sealed housing and draws water from the lower inlets on the gear housing, which is why the inlets being clear of debris is part of the same maintenance picture as the gearcase service. Everything in the outboard lower unit operates as an interdependent system, and keeping any one component in good condition depends partly on the condition of everything else around it.
Gear Lube: What It Protects and Why It Breaks Down
Gear lube in the outboard lower unit does three things simultaneously: it lubricates the meshing gear surfaces under load, it cushions the gears against the shock loading that happens during engagement and direction changes, and it carries heat away from the gear contact zones. The gears inside a gearcase are running at high speed under significant torque, and the film of lubricant between their surfaces is what prevents the metal-to-metal contact that causes wear. When that film breaks down or gets contaminated, wear accelerates faster than any service interval accounts for.
New gear lube is clear to light amber and has a specific viscosity formulated for the gear geometry and speed range of the outboard it's designed for. Over time and use in an outboard lower unit, it darkens as metal particles from normal gear wear accumulate in suspension, and it may take on a milky or grayish appearance if water has entered the housing.
Dark gear lube from normal use is informative but expected; milky gear lube is a problem that needs immediate attention because water contamination destroys the lubricant film and accelerates corrosion on the gear and bearing surfaces simultaneously.
The service interval for gear lube in an outboard lower unit is annually or every 100 hours, matching the impeller interval for a reason. Draining the old lube at the same time you pull the impeller gives you two diagnostic data points at once: the condition of the impeller tells you about water pump wear, and the condition of the gear lube tells you about gearcase seal integrity and internal wear. An experienced technician can read a lot from what comes out of both before a single new part goes in.
Reading the Drained Gear Lube
The gear lube you drain from an outboard lower unit during a service visit is one of the most informative diagnostic indicators available without disassembling the gearcase. Dark but uniform lube with small metal particles in suspension is normal wear; it tells you the gears have been working but not that anything is failing.
Metallic particles that are chunky rather than fine, or a significant quantity of metal in the drain pan, suggests something more aggressive than normal wear and is worth a closer look at the gear surfaces before refilling.
Milky or gray-tinted gear lube is the finding that changes the scope of the service visit. Water in the gearcase gets there through a compromised seal, either at the propeller shaft, the driveshaft, or through a shift rod seal that's failed. Once water reaches the gear lube, the emulsion that forms provides almost no lubrication and actively promotes corrosion on every metal surface it touches.
Finding milky lube during a routine change means the seals need to be inspected and the source of the intrusion identified before refilling with fresh lube, because fresh lube in a housing with a compromised seal will look the same way at the next change.
The propeller shaft seal is the most common water entry point in an outboard lower unit. It sits at the aft end of the gearcase where the propeller shaft exits the housing, and it's exposed to the mechanical movement of the shaft, the water pressure differential between the housing interior and the outside, and whatever physical trauma the propeller and shaft encounter when hitting submerged objects. A seal that's been nicked by a rope or deformed by a shaft strike may show no external indication of damage while steadily allowing water past it during operation.
The Propeller Shaft and Its Relationship to the Lower Unit
The propeller shaft exits the outboard lower unit at the aft end and passes through the propeller shaft seal before connecting to the propeller via a spline and retained with a prop nut. The shaft itself is hardened steel and durable under normal loading, but it's vulnerable to impact from debris, hitting bottom, or striking an object at speed. A shaft that's been bent even a small amount from an impact runs out of true, which creates vibration, accelerates seal wear from the eccentric shaft motion, and stresses the bearings inside the gearcase on every rotation.
Propeller selection affects the lower unit in ways that aren't always obvious. A propeller that's pitched too high for the engine forces the gears to work under higher torque loads than the engine's rated output was designed to deliver through that gear ratio. Over time, this kind of sustained overloading shows up in the gear lube as accelerated metal particle accumulation and, eventually, in the gearcase as premature bearing or gear wear.
Fishing line wrapped around the propeller shaft is one of the most underappreciated threats to the outboard lower unit. Line that gets wound tight enough around the shaft can cut through the propeller shaft seal cleanly and without any external indication that anything has happened. The first sign is often milky gear lube at the next service or, in a worse scenario, a propeller that locks up or becomes difficult to turn freely.
Warning Signs From the Outboard Lower Unit
Vibration that wasn't present before a specific outing is almost always worth investigating at the outboard lower unit first. A new vibration can indicate a propeller that's taken a hit and is now out of balance, a shaft that's been bent slightly, or in some cases a gear or bearing inside the gearcase that's developing a problem. The vibration from a bent shaft or out-of-balance propeller is usually perceptible at the helm through the throttle or tiller and changes with RPM in a way that's distinct from engine-related vibration.
Difficulty shifting, including grinding, resistance, or a shift that requires more force than usual to complete, points directly into the outboard lower unit. Clean shift engagement depends on the dog clutch, the shift rod, and the gears being in good mechanical condition and properly adjusted.
Grinding during a shift can indicate wear on the dog clutch faces, misadjustment of the shift linkage, or in some cases a shift rod that's been bent by an impact. This is a symptom that worsens over time without intervention rather than resolving on its own.
Oil sheen on the water around a stationary outboard, particularly visible when the engine hasn't been run recently, is a sign that gear lube is escaping through a compromised seal. The sheen is faint because gear lube disperses quickly in water, but it's consistent in location relative to where the propeller shaft seal sits at the aft end of the housing. Ignoring this symptom means running a progressively lower gear lube level, which accelerates wear on the components that lube is there to protect.
Gear Lube Change: How It's Done and What to Check
Changing gear lube in the outboard lower unit involves two plugs on the housing: a drain plug at the lowest point of the gearcase and a vent plug located higher on the housing, often near the anti-ventilation plate. Both plugs use a flat-blade or specific socket and have sealing washers that should be replaced or inspected at every service. Removing the vent plug first relieves any vacuum in the housing that would slow drainage; then removing the drain plug lets the old lube flow out completely.
The new gear lube goes in through the drain hole using a gear lube applicator tube that threads into the drain plug port. You fill from the bottom up, which allows air to escape through the vent hole rather than becoming trapped in the housing. Filling continues until lube appears at the vent hole, at which point the vent plug is reinserted quickly to minimize loss, followed by the drain plug with new or inspected sealing washers.
Gear lube capacity and specification vary by outboard lower unit model and year, and using the correct lube matters as much as using any lube at all. Outboard gear lube is formulated specifically for the hypoid gear geometry and the operating temperature range of marine engine maintenance applications and is not interchangeable with automotive gear oil. The owner's manual for your specific engine identifies both the correct specification and the fill capacity, and these are the numbers to use rather than a general marine gear lube recommendation that may not match your specific unit.
Review Lower Unit Service Supplies Before Seasonal Maintenance
The outboard lower unit doesn't ask for much. Gear lube changes on a consistent annual schedule, seals checked for evidence of water intrusion when the lube is drained, the propeller shaft checked for line and impact damage, and the shift engagement assessed for any change in feel across a season. These are low-cost checks with high consequence ratios; a gear lube change costs less than dinner, and the gearcase it's protecting costs more than the engine service it gets bundled with.
Getting ahead of the service rather than reacting to symptoms means everything gets maintained while it's still working rather than after it's started failing. Browse lower unit service supplies and compatible gear lube at BoatMaxOnline before your seasonal maintenance session to make sure you have the right lube specification, correct plug washers, and any seals or impeller components you're replacing at the same visit.
If you're unsure which products match your outboard lower unit make, model, and year, contact BoatMaxOnline and we'll confirm the right spec before you order.
