If you're shopping for a portable outboard and you keep seeing shaft length listed as a spec without much explanation, you're not alone. Most engine listings give you the number, 15 inches or 20 inches, and leave you to figure out what it means for your specific boat. The short answer is that shaft length determines how deep the propeller sits in the water relative to your transom, and getting that relationship wrong affects both performance and handling in ways that range from annoying to actually problematic.

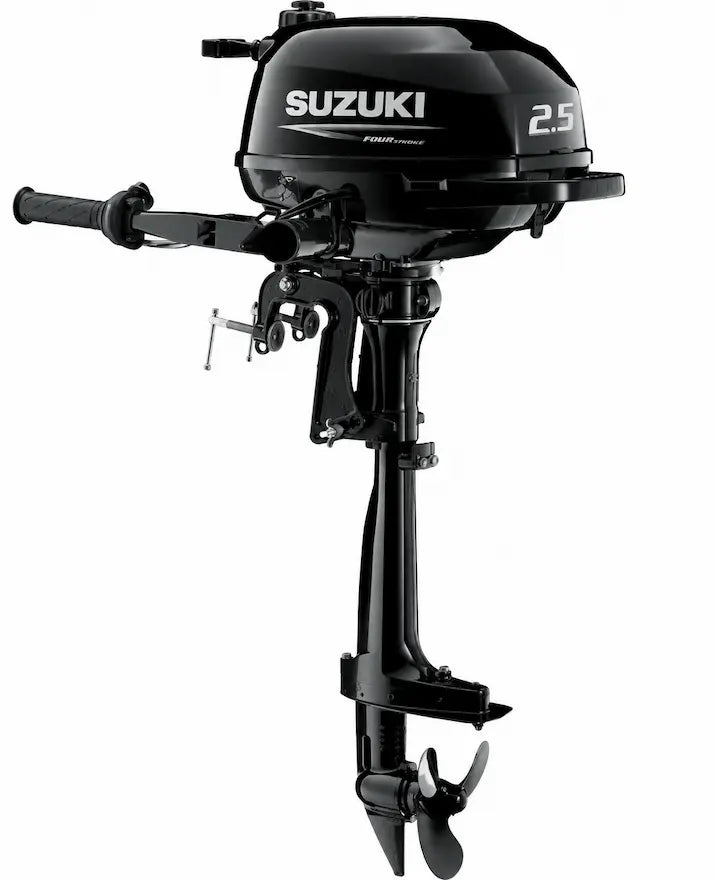

A short shaft outboard motor has a nominal shaft length of 15 inches, measured from the mounting surface at the top of the shaft to the cavitation plate just above the propeller. This is the most common configuration for small portable outboards and has been the standard fit for a wide range of small boats, tenders, canoes, aluminum fishing boats, and inflatables for decades. Whether it fits your specific boat comes down to one measurement: the height of your transom from the waterline to the top of the mounting surface.
At BoatMaxOnline, we carry portable and small outboard motors across Yamaha, Suzuki, Honda, and other brands, and shaft length is one of the most common fitment questions we see before a purchase. This guide explains what transom height means, how to measure it accurately, when a short shaft outboard motor is the right call, and where the limits of this configuration show up in real use.
What Short Shaft Actually Means
The term short shaft refers to the length of the driveshaft section between the powerhead and the lower unit on an outboard motor. On a short shaft outboard motor, this dimension is standardized at 15 inches, which places the cavitation plate at a specific depth below the mounting surface of the transom.
The goal is for the propeller to run at a depth where it's fully submerged in clean water under all normal operating conditions, without running so deep that it creates unnecessary drag or puts the lower unit in danger of striking the bottom in shallow water.
This 15-inch standard developed alongside the small boat designs that became dominant in recreational boating: the jon boat, the inflatable tender, the canoe with a motor mount, and the small aluminum fishing boat. These hull types typically have a transom height of 15 to 17 inches, which is the range that places the propeller at the correct running depth with a standard short shaft outboard motor.
Where things get complicated is that transom height varies between boats, and not every boat in this category has the same measurement. A 15-inch transom puts the motor in exactly the right position. A 17-inch transom with a short shaft motor leaves two inches of lower unit above the optimal running depth, which may be manageable on calm water but can lead to propeller ventilation on chop or when the hull is trimmed bow-down.
Measuring Your Transom Before You Buy
Getting the transom height measurement right before ordering a short shaft outboard motor is the step that prevents the most common fitment mistake. The measurement goes from the top of the transom mounting surface, where the motor clamps will sit, straight down to the bottom of the transom at the waterline. On flat-bottomed boats this is a vertical measurement; on hulls with a defined keel or a curved bottom, you measure from the center of the transom to the waterline.
The target for a short shaft outboard motor is a transom height of 15 inches, with a tolerance of plus or minus one inch that covers normal variation in hull geometry and load. A transom that measures 15 to 17 inches will typically work with a short shaft without compromising performance in the conditions these boats operate in.
A transom that measures 17 to 19 inches is in a gray zone where a short shaft may work in calm water but where a long shaft, with its 20-inch dimension, would be the more reliable fit. Anything above 19 inches should generally move to a long shaft or extra-long shaft configuration.
One detail that trips up buyers measuring for the first time is confusing the transom height with the overall height of the transom board. The measurement you need is from the mounting surface down to the waterline, not from the top of the transom to the keel. On a boat sitting on a trailer or on dry land, the relevant reference point is the bottom of the hull where it meets the water, not the bottom of the transom board itself if the hull has rocker or curvature.
Boats That Typically Use a Short Shaft Outboard Motor
Small aluminum fishing boats in the 10 to 14-foot range are the most common application for a short shaft outboard motor, and these boats were largely designed with the 15-inch shaft standard in mind. The low, flat transoms on jon boats and small V-hull aluminum boats position the motor exactly where the propeller needs to be for efficient thrust and proper steering leverage.
Inflatable dinghies and rigid inflatable boats up to about 12 feet are another common fit for a short shaft outboard motor, particularly as tender motors on cruising boats. The transom height on most inflatables in this size range is designed around 15-inch shaft motors, and the motor weight and length of a short shaft unit typically balance better on a small inflatable than the added length and weight of a long shaft.
The exception is some purpose-built performance RIBs with higher transoms that may specify a long shaft motor, and checking the manufacturer's recommendation for the specific inflatable before assuming short shaft is worth the two minutes it takes.
Canoes and kayaks with aftermarket motor mounts, small fiberglass prams, and flat-bottomed skiffs also commonly use a short shaft outboard motor because their low freeboard and shallow transoms match the 15-inch dimension well. On these boats, a long shaft motor would hang the cavitation plate well below the waterline even at rest, which creates drag and can cause the lower unit to strike bottom in the shallow water these boats are typically used in.
Performance Differences Between Short and Long Shaft
Running a short shaft outboard motor on the correct transom produces efficient, clean thrust with the propeller fully submerged and the cavitation plate close to the water surface without being submerged. This position allows the propeller to work in undisturbed water below the hull's turbulence and minimizes the risk of air ingestion from the surface that causes propeller ventilation. On a well-matched boat, the motor runs quietly and produces its rated thrust in a predictable way.
If the transom is too low for the shaft length, meaning the motor is effectively positioned lower than optimal, the motor runs fine but the lower unit sits deeper than it needs to be, which adds drag at speed and reduces ground clearance in shallow water. This is less common with short shaft motors than the inverse problem, but it does occur on boats with unusually low transoms or on flat-water boats that have had their transoms modified.
The more common mismatch is a transom that's too tall for a short shaft outboard motor. When the motor can't sit deep enough, the propeller approaches the water surface, and at any trim angle or wave action that lifts the stern, the prop starts ingesting air rather than water. This causes a sudden loss of thrust and a characteristic over-revving sound as the prop spins in air rather than under load.
In calm, flat water this may never happen, but in any kind of chop or at higher speeds, the boat will repeatedly lose thrust at the worst moments. This is the mismatch that turns an otherwise suitable motor into a frustrating one, and it's entirely avoidable with a correct transom measurement before purchase.
When a Short Shaft Outboard Motor Stops Being the Right Choice
A short shaft outboard motor is the right choice up to the point where the transom height no longer matches the 15-inch shaft specification, and there are specific boat categories where that point comes early. Larger aluminum boats above 16 feet, most fiberglass center consoles and walk-arounds, and boats designed for offshore or rough-water use typically have transoms in the 20-inch range that match a long shaft motor.
Deep-V hulls designed for performance or offshore use are another category where a short shaft outboard motor is typically the wrong fit regardless of the nominal transom height. The deadrise angle of a deep-V hull means the stern sits lower in the water at rest and rises as the hull reaches planing speed, and the propeller needs more shaft length to stay properly submerged through that transition and at cruise speed.
On these hulls, even if the transom measures 17 inches, a long shaft is likely the more reliable choice, and checking what the boat manufacturer specifies for outboard motor installation is the most accurate reference.
Weight and handling considerations also change as boat size increases. A short shaft outboard motor in the 6 to 25 horsepower range is portable, which is part of what makes the category useful. Above 25 horsepower, the shaft length question often gets overtaken by the transom design of the larger boats these motors go on, which typically demand a long or extra-long shaft regardless of horsepower.
Portable Use and the Short Shaft Advantage
One of the practical advantages of a short shaft outboard motor that doesn't always come up in spec comparisons is how much easier it is to handle off the boat. A shorter shaft means a shorter overall motor, which makes carrying, storing, and fitting the motor into a locker, car trunk, or dinghy bag noticeably simpler than an equivalent long shaft motor.
Fueling is another area where the difference shows up. A short shaft outboard motor in the 2.5 to 6 horsepower range is typically light enough for one person to carry, mount, and demount without assistance. The short shaft reduces the lever arm length of the motor when it's tilted or carried, which affects how the weight feels when you're moving it around rather than just what it weighs on a scale.
Boaters who have made the switch from a long shaft to a short shaft on a tender that didn't require the extra length consistently note that the motor feels lighter and easier to handle even when the listed weight is only a few kilograms different.
The storage profile also matters for boats with limited outboard storage solutions. Many small tenders, inflatables, and day boats have purpose-built motor brackets or storage clips sized for short shaft outboard motors.
A long shaft motor may not fit these brackets and may require a different storage approach that adds friction to every outing. If the boat came with a bracket or mount position already built in, checking what shaft length it was designed for is worth doing before assuming any shaft length will work.
Use the Fit Notes Before Comparing Short-Shaft Outboards
A short shaft outboard motor is a well-defined product category with a specific use case, and the boats it fits are easy to identify once you have your transom measurement in hand. If your transom is 15 to 17 inches, you're in the right zone. If it's shorter, almost any short shaft motor will work.
If it's taller than 17 inches, you're approaching the boundary where a long shaft becomes the safer fit, and buying a short shaft at that point means accepting ventilation risk in conditions outside flat, calm water.
The measurement takes two minutes and prevents the most common mistake in outboard shopping, which is assuming shaft length is a minor spec rather than a fitment requirement. Once you know your transom height and have confirmed a short shaft outboard motor is the correct fit, the remaining comparison points are horsepower, fuel type, brand, and features. Browse short shaft outboard motor options at BoatMaxOnline to find motors matched to your boat size and transom height, or contact BoatMaxOnline if you want to confirm fitment before ordering.
