A flashing REV-LIMIT lamp with a triple beep in neutral, or “Water in Fuel” on the gauge, means the float switch in the motor's own fuel filter/water separator has risen on a layer of water. The owner's manual instruction is the same on every family that has the alert: stop the engine immediately if wind and water conditions are safe, and check the fuel filter/water separator for water, or consult your authorized Suzuki marine dealer. Drain the cup and refit the element and seals; the float switch that triggers the alert sits in the bottom of that cup. The flashing REV-LIMIT lamp is only the indicator: the over-revolution caution lights that lamp continuously and pulls the motor down to about 3000 r/min; this alert only flashes it.
If you do not have a water-separating filter between the tank and the motor, this alert is the reason to fit one. Suzuki recommends it in the owner's manuals from the DF9.9B up.
What the alert looks like, by family
Suzuki calls this the water in fuel caution system. The engine is equipped with an integral fuel filter/water separator and an associated alert system; when enough water has collected in the cup to lift the float switch, the alert trips. Each family's manual describes the indication slightly differently, and one prints a different beep count.
| Family (manual) | Indication |
|---|---|
| DF70A/80A/90A/100B (service manual) | Base manual, DF100B: red REV-LIMIT lamp flashes and buzzer triple-beeps in neutral only. The 2020 supplement for serial 140001 and later: remote models the same; tiller models (DF70ATH, DF90ATH, DF90AWQH) get the triple beep in neutral with no lamp mentioned. The 2025 supplement adds a Water in Fuel Alert for serial 040001 and later: REV LIMIT lamp flashes in any gear, triple beep only in neutral. |
| DF75/DF90A (2023) | Multi-function gauge: “Water in Fuel” and caution alarm icon at all times, buzzer only in neutral. Monitor-tachometer: red REV-LIMIT lamp flashes in any gear, triple beep only in neutral. |
| DF100A/DF115A/DF140A (2016) | Red REV-LIMIT lamp flashes and buzzer triple-beeps, in neutral only. |
| DF115B/DF140B (2023) | Gauge: “Water in Fuel” and icon at all times, buzzer in neutral only. Monitor-tachometer: red REV-LIMIT flashes in any gear, triple beep only in neutral. |
| DF150A/DF175A/DF200A (2020) | Red REV-LIMIT lamp flashes in any gear; the buzzer starts double beeping only in neutral (as printed in this manual). |
| DF150AP/DF175AP/DF200AP (2020) | “Water in Fuel” and caution alarm icon at all times; buzzer only when in neutral. |
| DF225/DF250 (2021) | Red REV-LIMIT lamp flashes in any gear; triple beep only in neutral. |
| DF250AP/DF300AP (2021) | “Water in Fuel” and caution alarm icon at all times; buzzer only in neutral. |
| DF300B/DF350A (2023) | “Water in Fuel” and caution alarm icon at all times; buzzer only in neutral. |
On the gauge models the caution message clears when you press any gauge button, but the icon stays until the cause is eliminated, and the buzzer stops when it is. Because the buzzer sounds only in neutral, you may not hear it under way; a flashing REV-LIMIT lamp while running at normal speed is this alert, not the over-revolution caution. All the other lamp patterns are in the warning light and buzzer guide.
What Suzuki says to do
- Stop the engine immediately, if wind and water conditions are safe to do so.
- Check the fuel filter/water separator for water, or consult your authorized Suzuki marine dealer. The DF250AP/300AP manual adds: if any water exists in the fuel filter cup, remove the cup and drain the water.
The cup is the low-pressure fuel filter under the cowl, with a wire to the float switch in its base. With the engine off and cool and the key off, the DF70A to DF100B service manual procedure comes down to this (the DF150A, DF150AP and DF225/250 owner's manuals print the same first step):
- Push the connector lock tab and disconnect the water sensor lead wire connector before you touch the cup. The service manual says to disconnect the lead wire connector first.
- Separate the fuel filter cup from the filter body by turning the cup.
- If any water exists in the fuel filter cup, remove the cup and drain the water. Pull out the element and look at it, the O-ring and the seal ring.
- Wash the filter element with clean solvent and dry it.
- Reassemble with the O-ring and seal ring in place, reconnect the sensor connector, and check for fuel leaks before you go out.
If water accumulation, sediment, leakage, cracks or damage are found, the service manual says to replace the filter. Whatever its condition, the low pressure fuel filter is a scheduled item: the owner's manuals say it must be replaced by an authorized Suzuki marine dealer periodically, at every 400 hours (2 years). If the alert returns after a clean cup, the float switch itself can be tested (fully up, continuity; fully down, no continuity) and the filter case replaced if it fails; that is a dealer job, and a warranty matter if the motor is still covered.
Which motors have the sensor
The integral fuel filter/water separator with its alert is on the DF70A to DF100B family (from serial 140001 on the DF70A/80A/90A; the DF100B had it from the start, and the DF75 from serial 340001), the DF100A/115A/140A, DF115B/140B, DF150A/175A/200A, DF150AP/175AP/200AP, DF225/250, DF250AP/300AP and DF300B/350A.
It is not in the manuals we have for anything smaller. The DF9.9B/15A/20A service manual lists three caution systems (over-revolution, low oil pressure, overheat) and the DF40A/50A/60A service manual lists four (adding low battery voltage); neither mentions water in fuel, and nor do the DF2.5, DF4A/6A, DF8A/9.9A or DF25A/30A owner's manuals. On those motors the only water-in-fuel warning is the engine stumbling, and the only protection is the filter you fit yourself.
Why water gets into the fuel
Three ways, in plain terms. Ethanol blends absorb moisture from the air and, once saturated, drop it out as a water layer at the bottom of the tank. A part-full tank breathes and condenses water on its walls as the temperature swings. And a marina pump or a portable can that has been sitting delivers water already mixed in. Suzuki's fuel rules bear on all three: gasohol is allowed only if the ethanol content is not greater than 10%, and gasoline kept in the fuel tank for long periods will produce varnish and gum. The full octane, ethanol and stabilizer rules by model are in the fuel requirements page. If water has got as far as the motor's cup, assume the tank has more; the DF9.9B service manual's advice for the fuel tank is that if water or other contamination is found, drain and clean the tank.
Preventing it

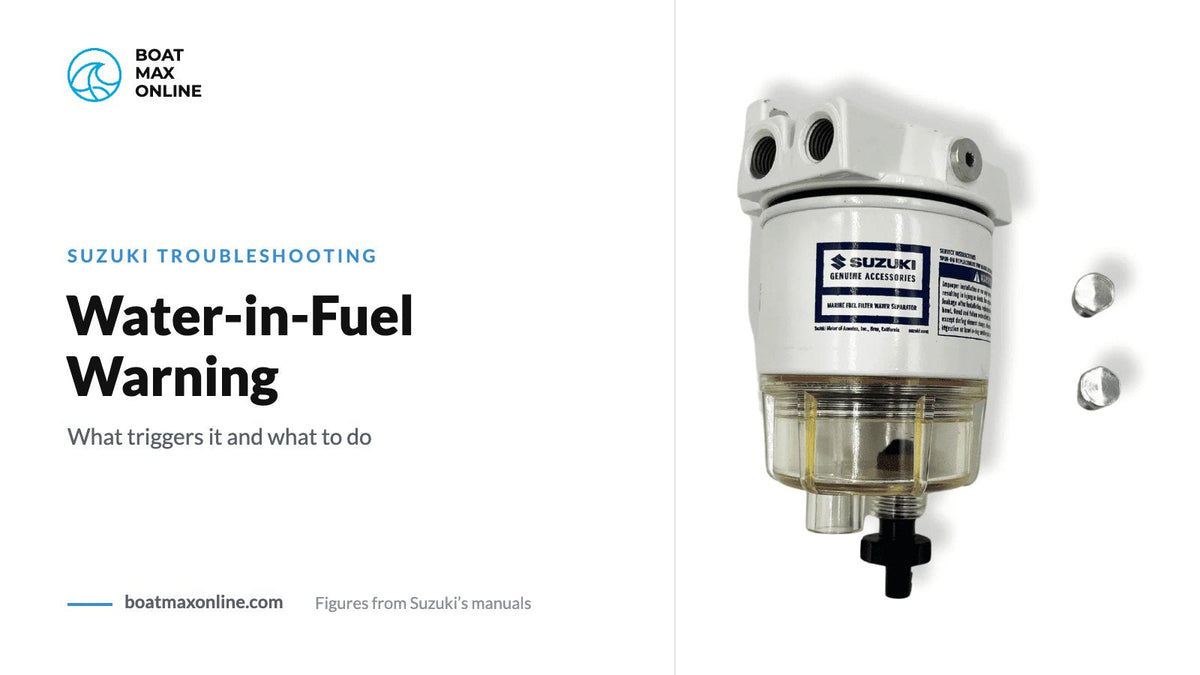

Suzuki recommends that you install a water-separating fuel filter assembly between your boat's fuel tank and the outboard motor; the DF9.9B manual adds that fuel filtration of this type helps prevent water that may be present in the boat's tank from contaminating the motor's fuel system. The maintenance charts give the element its own line: replace the water-separating fuel filter element every 12 months, or more often if the filter manufacturer recommends it. Fit the assembly for 140 hp and below or the assembly for 150 hp and above, and keep a replacement element aboard. Why the separator matters, and how to read its bowl, is in fuel-water separator filter: why it matters.
Beyond the filter: buy fuel where turnover is high, keep the tank full when the boat sits, and treat the fuel. Suzuki's own storage procedure is to add fuel stabilizer to the tank and run the engine in neutral to distribute it, and Suzuki fuel conditioner and water remover is the product for that.
Parts for this job
Motor-side filters are in Suzuki fuel filters, the separators and elements in fuel filters and separators, and the hoses, primer bulbs and connectors in fuel system parts. Boat Max Online is an authorized Suzuki, Honda and Yamaha dealer; orders over $149 ship free to the lower 48.
Sources: Suzuki owner's manuals for DF75/90A, DF100A/115A/140A, DF115B/140B, DF150A/175A/200A, DF150AP/175AP/200AP, DF225/250, DF250AP/300AP, DF300B/350A and DF9.9B/15A/20A; Suzuki service manuals 99500-87L10-01E (DF70A/80A/90A/100B with supplements), 99500-92J00-01E (DF100A/115A/140A), 99500-89L00-01E and 99500-88L01-01E. Figures are Suzuki's published values; confirm against the manual for your model year and serial number.
